CCS Inc.

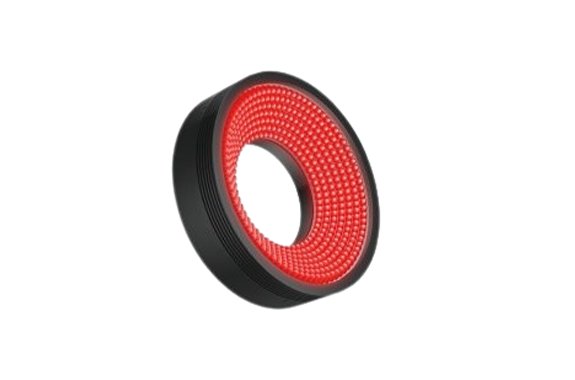

CCS LDR2 Series Ring
Manufacturer: CCS Inc.
Model: LDR2 Series
Features
Standard Ring Lights
- Uses a flexible circuit board to achieve the functions needed for a Ring Light.
- It can illuminate workpieces at an angle and can illuminate the whole workpiece.
- This alleviates the influence of slight position or inclination deviations in the workpiece and enables stable imaging.
Flexible circuit board
Succeeds in greatly reducing LED’s heat
- Heat dissipation material is used between the board and the aluminum housing, absorbing heat produced by the LEDs.
- This succeeds in greatly reducing the creation of heat, which causes the LEDs to deteriorate.
Cross-section image of the LDR2-120
Specifications

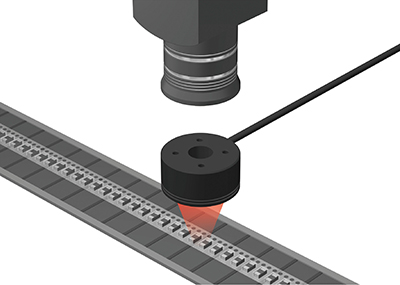

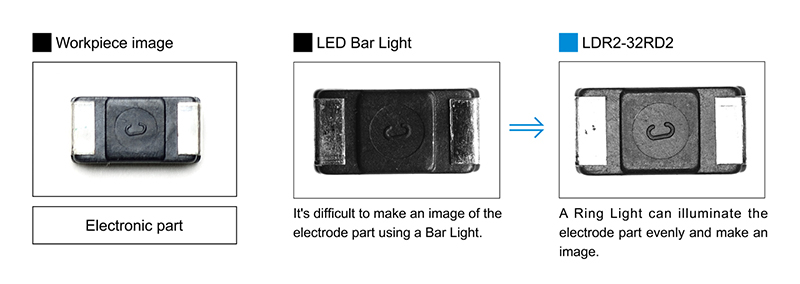

| Description | Visual inspection |
|---|---|
| Workpiece | Electronic parts |
| Conventional lighting | LED Bar Light |
| New lighting | LDR2-32RD2 |
| Result | Improved uniformity |

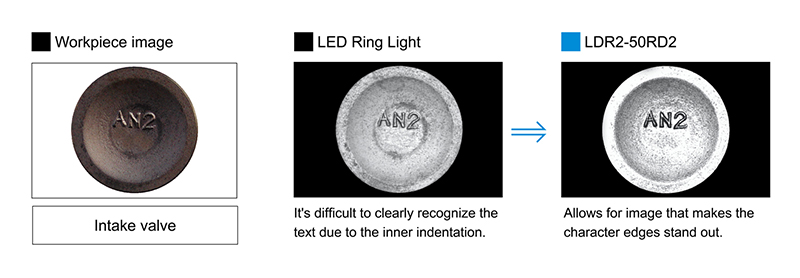

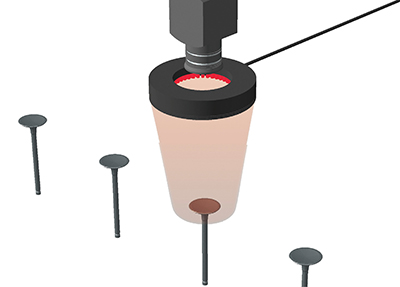

| Description | Character recognition |
|---|---|
| Workpiece | Intake valve (automobile part) |
| Conventional lighting | LED Ring Light |
| New lighting | LDR2-50RD2 |
| Result | Emphasized characters |
