CCS LFL-3212RD2 Flat
Manufacturer: CCS Inc.
Model: LFL-3212RD2
Feature

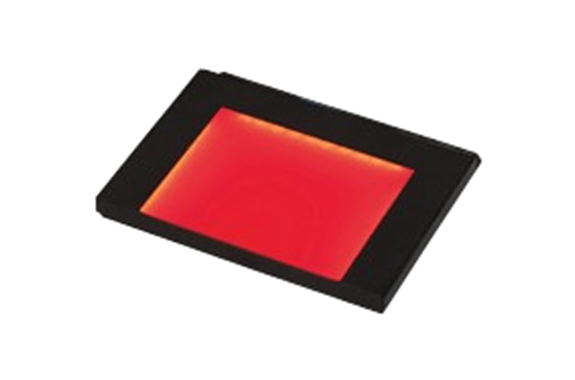

- This Light Unit emits red light and measures 66 x 81 x 7 mm (width x depth x height).
- The light-emitting surface measures 45 x 56 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | W 66 mm x D 81 mm x H 7 mm |
| Input voltage | 24VDC |
| Power consumption | 1.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Acrylic resin, SUS |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 80 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
