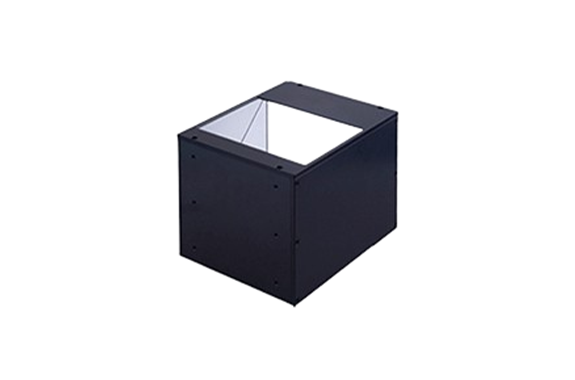

CCS LFV-PF-100SW High Power Strobe
Manufacturer: CCS Inc.
Model: LFV-PF-100SW
Features
- This Light Unit emits white light and measures 110 x 148 x 105 mm (width x depth x height).
- The light-emitting surface measures 102 x 100 mm.
- Coaxial type.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,800 K typ. |
| Dimensions | W 110 mm x D 148 mm x H 105 mm |
| Peak current | 64.8 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-), 5: (+), 6: (+), 7: (-), 8: (-), 9: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Glass |
| Input connector | ELP-09V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 1,400 g max. |
| Accessories | Instruction Guide, 2-branch cable (Model: FCB0.3-PF-W-EL4EL9) x 2 |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |

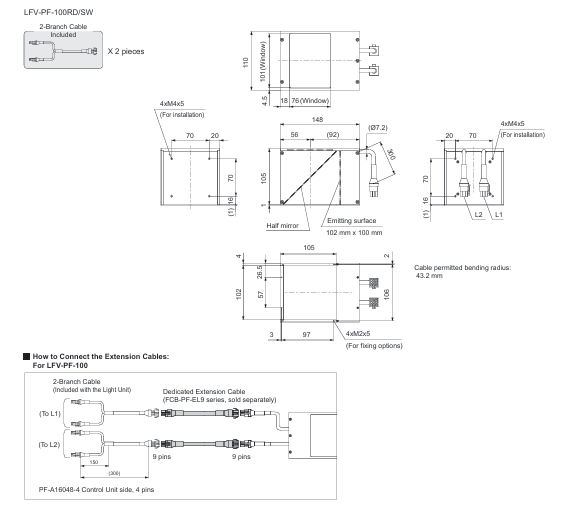

Dimensions (mm)
