CCS Inc.
CCS LFV3-200RD(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-200RD(A)
Features

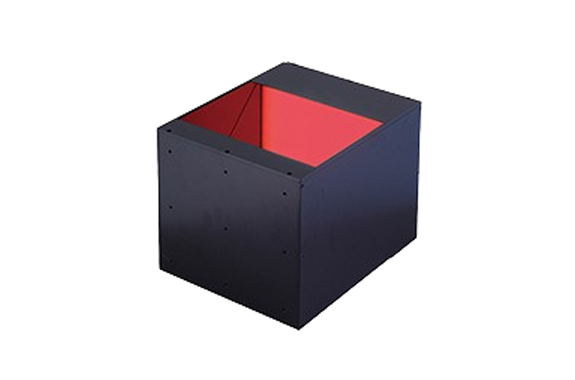

- This Light Unit emits red light and measures 226 x 272 x 207 mm (width x depth x height). The light-emitting surface measures 218 x 202 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | W 226 mm x D 272 mm x H 207 mm |
| Input voltage | 24VDC |
| Power consumption | 43 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Glass, Steel sheet |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 4350 g |
| Accessories | User Manual |
Dimensions (mm)
