CCS Inc.

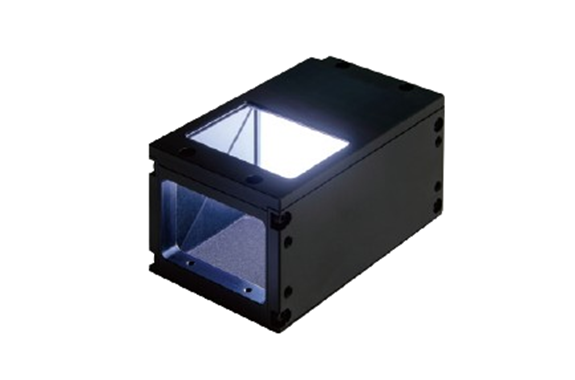

CCS LFV3-70RD-RA(A) / LFV3-70SW-RA(A) / LFV3-70BL-RA(A) Coaxial
Manufacturer: CCS Inc.
Model: LFV3-70RD-RA(A) / LFV3-70SW-RA(A) / LFV3-70BL-RA(A)
Features
- 84mm (W) x 120mm (D) x 78mm (H) coaxial light with a light emitting surface of 76mm x 73mm.
- Available colors: red (LFV3-70RD-RA(A)), white (LFV3-70SW-RA(A)), and blue (LFV3-70BL-RA(A)).
- 90-degree position change of a standard coaxial light illumination port.
Specifications
| LED color | LFV3-70RD-RA(A)：Red LFV3-70SW-RA(A)：White LFV3-70BL-RA(A)：Blue |
|---|---|
| Dimensions | W 84 mm x D 120 mm x H 78 mm |
| Input voltage | 24 VDC |
| Power consumption | LFV3-70RD-RA(A) : 13 W max. LFV3-70SW-RA(A) : 19 W max. LFV3-70BL-RA(A) : 16 W max. |

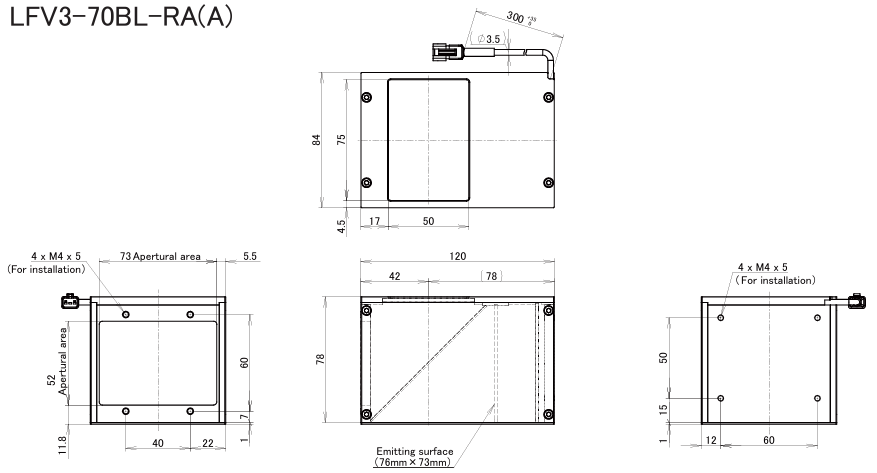

Dimensions (mm)
