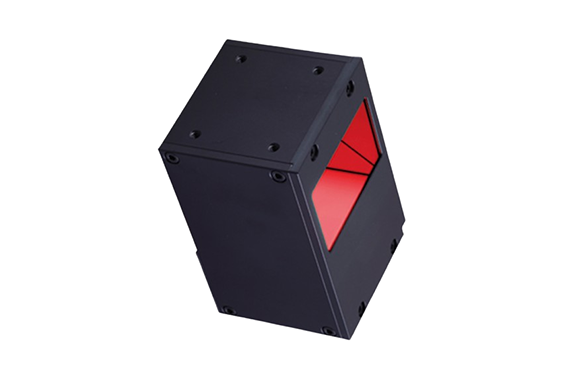

CCS LFV3 Series Coaxial
Manufacturer: CCS Inc.
Model: LFV3 Series
Features
- These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
- Mirror surface workpieces are uniformly illuminated without unevenness.
- The diffusion plate is adjustable and exchangeable.
Customize the diffusion
| Diffusion plate status | Result |
|---|---|
| Change the transmittance rate from (high) to (low) | Increased uniformity |
| Change the installation position to the LED side | Emphasized directionality |
1) Prepared two types of diffusion plates with different transmittance rate.
- Replace the diffusion plate to change the transmittance rate.
2) The installation position of the diffusion plate can be adjusted.
- Change the position to achieve various imaging effects.
LFV3-CP series
- Replacing the half-mirror with a beam splitter increased accuracy. It is perfect for tiny workpieces and environments with limited installation space.
- Highly-accurate optical glass is used for the camera window and the half-mirror.
- This allows for stable imaging when using high-resolution cameras.
LFV3 series, a Coaxial Light with improved quality
