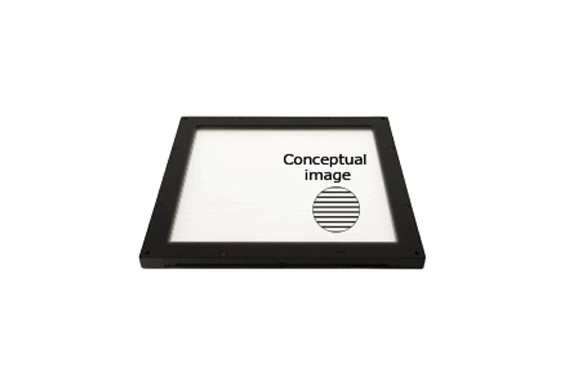

CCS LFX3-200SW-PT-A(A) Line Pattern
Manufacturer: CCS Inc.
Model: LFX3-200SW-PT-A(A)
Features
- This Light Unit emits white light and measures 243 x 243 x 13.1 mm (width x depth x height).
- The light-emitting surface measures 200 x 200 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,500 K typ. |
| Dimensions | W 243 mm x D 243 mm x H 13.1 mm |
| Input voltage | 24 VDC |
| Power consumption | 46 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin (Light-guiding plate, protective plate) |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 910 g max. |
| Accessories | User Manual |
Dimensions (mm)
