CCS LFXV-PF-100SW High Power Strobe
Manufacturer: CCS Inc.
Model: LFXV-PF-100SW
Features

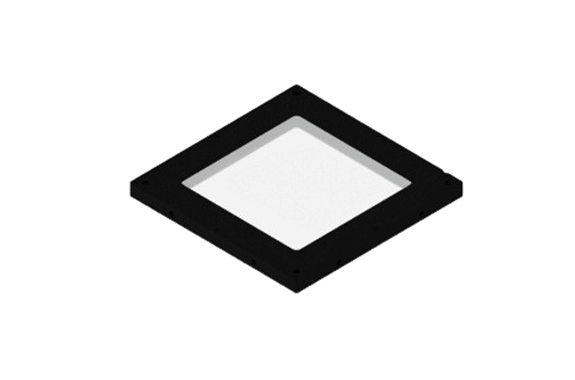

- This flat dome light emits white light and measures 143 x 143 x 10 mm (width x depth x height).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5600 K typ. |
| Dimensions | W 143 mm x D 143 mm x H 10 mm |
| Peak current | 36 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1, 2, 5, 6: (+)/3, 4, 7, 8: (-)/9: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin (protective plate, light-guiding diffusion plate) |
| Input connector | ELP-09V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 440 g |
| Accessories | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |

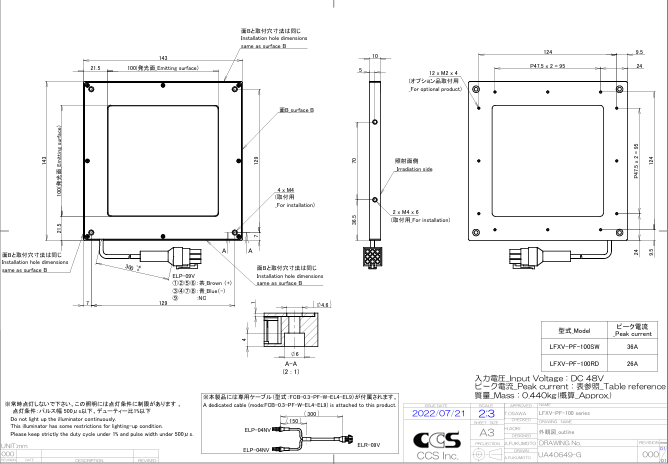

Dimensions (mm)
