CCS Inc.

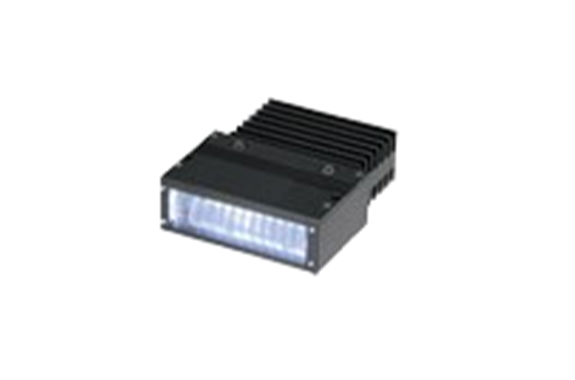

CCS LN-60SW2-HK-STK Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LN-60SW2-HK-STK
Features
- This Light Unit emits white light and measures 70 x 24.5 x 82 to 97 mm (width x depth x height).
- The light-emitting surface measures 60 x 16.5 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | W 70 mm x D 24.5 mm x H 82 to 97 mm |
| Input voltage | 24VDC |
| Power consumption | 6.1 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, acrylic transparency |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 250 g max. |
| Accessories | Hexagonal wrench, Instruction Guide |
Dimensions (mm)
