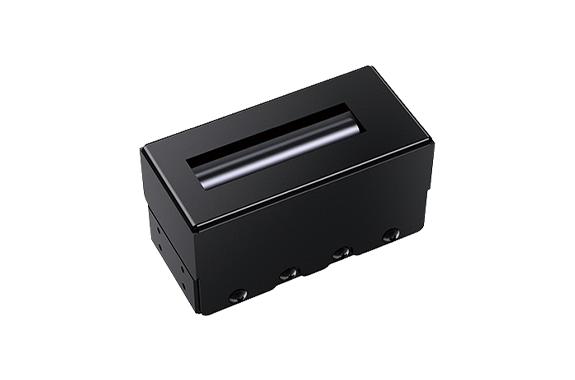

CCS LN-61UV3-365 UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: LN-61UV3-365
Features
- Line type ultraviolet LED light for convergent illumination with a peak wavelength of 365 nm.
- Measures W 91 mm x D 47.6 mm x H 47.5 mm, the light-emitting surface measures 61 x 16 mm.
Specifications
| LED color | Ultraviolet |
|---|---|
| Peak wavelength | 365 nm typ. |
| Dimensions | W 91 mm x D 47.6 mm x H 47.5 mm |
| Input voltage | 24 VDC |
| Power consumption | 7.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（High risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 430 g max. |
| Accessories | User Manual, Radiation aperture seal, UV DANGER seal |
| Caution | * Do not expose your eyes or skin to direct UV irradiation. * When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts). * Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone’s eyes. * Wear long sleeves and gloves to protect your skin from UV irradiation. * Thoroughly educate all those involved near the product about the dangers of UV LEDs. |

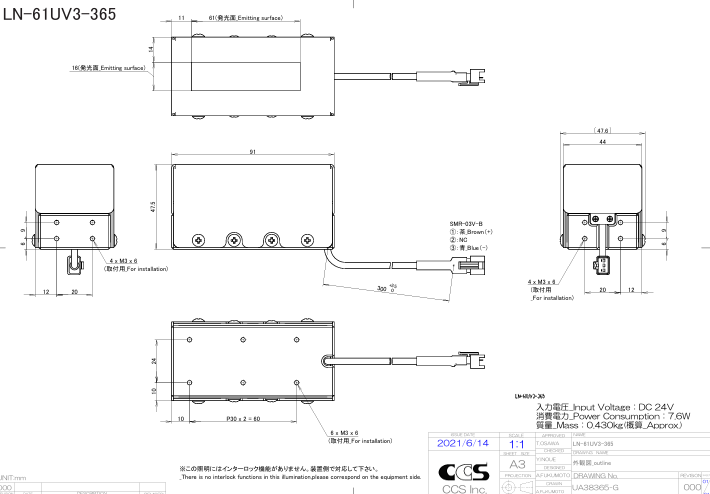

Dimensions (mm)
