CCS Inc.
CCS LND2-600RD2 Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LND2-600RD2
Features

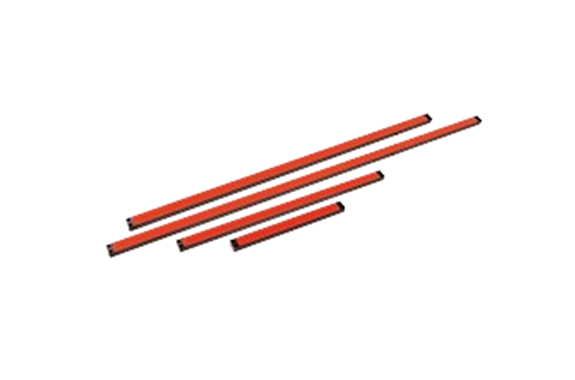

- This Light Unit emits red light and measures 634 x 27.2 x 18 mm (width x depth x height).
- The light-emitting surface measures 603 x 18.2 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | W 634 mm x D 27.2 mm x H 18 mm |
| Input voltage | 24VDC |
| Power consumption | 46 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM, PMMA (Diffuser) |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 360 g max. |
| Accessories | User Manual |
Dimensions (mm)
