CCS Inc.

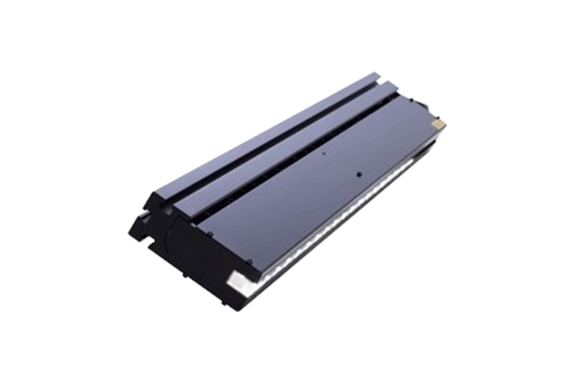

CCS LNDG-2000SW-LA Line (Oblique Angled Lighting)
Manufacturer: CCS Inc.
Model: LNDG-2000SW-LA
Features
- This Light Unit emits white light and measures W 2,065 x D 35.2 x H 86.2 mm.
- The light-emitting surface measures 2,000 x 10 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,000 K typ. |
| Dimensions | W 2,065 mm x D 35.2 mm x H 86.2 mm |
| Power consumption | 260 W max. |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | Metal connector PRC04-12A26S-37M18 (Tajimi Electronics co., ltd.) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Mod risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 8,300 g max. |
| Accessories | User Manual |
Dimensions (mm)
