CCS Inc.
CCS LNLP-100SW Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LNLP-100SW
Features

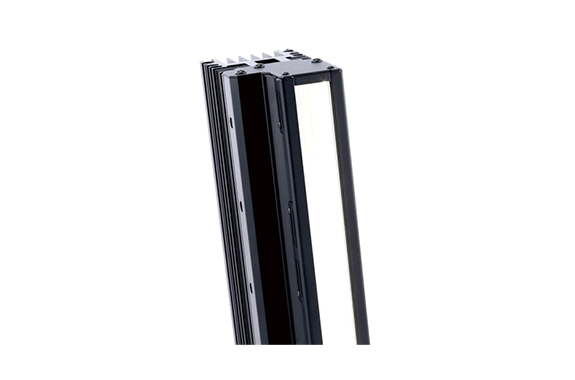

- This Line Light Unit emits white light and measures 161 x 60.2 x 126 mm (width x depth x height).
- The light-emitting surface measures 100 x 21 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,800 K typ. |
| Dimensions | W 161 mm x D 60.2 mm x H 126mm |
| Power consumption | 36 W max. |
| Case material | Aluminum alloy, Steel sheet, Resin |
| Input connector | Metal connector PRC04-21A26S-37M (Tajimi Electronics co.,ltd) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 1,400 g max. |
| Accessories | Instruction Guide, FG line (2 m), M4 mounting screw |
Dimensions (mm)
