CCS Inc.

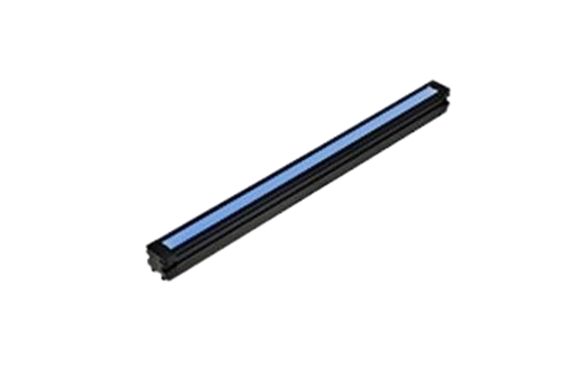

CCS LNSD-1800BL Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LNSD-1800BL
Features
- This Light Unit emits blue light and measures W 1830 x D 30 x H 32.5 mm.
- The light-emitting surface measures 1800 x 15 mm.
- High luminance type.
- Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | W 1,830 x D 30 x H 32.5 mm |
| Input voltage | 24VDC |
| Power consumption | 181 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,440 g max. |
| Accessories | User Manual |
Dimensions (mm)
