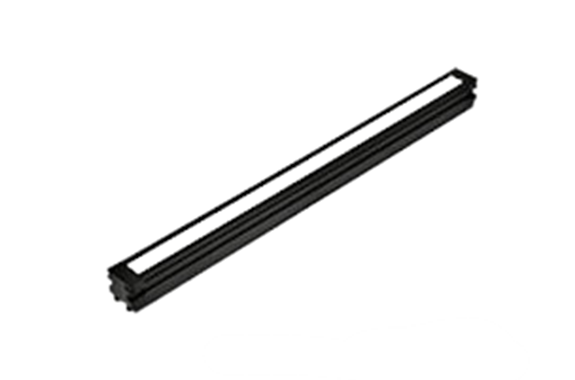

CCS LNSD-2800SW(A) Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LNSD-2800SW(A)
Features
- This Light Unit emits white light and measures W 2830 x D 30 x H 32.5 mm.
- The light-emitting surface measures 2800 x 15 mm.
- High luminance type.
- Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,000 K typ. |
| Dimensions | W 2,830 x D 30 x H 32.5 mm |
| Input voltage | 24VDC |
| Power consumption | 257 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 3,740 g max. |
| Accessories | User Manual |
Dimensions (mm)
