CCS LNSP2-700SW Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LNSP2-700SW
Features

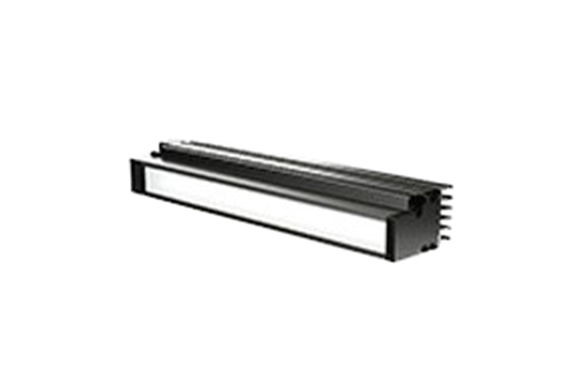

- This Line Light Unit emits white light and measures 726 x 42 x 70 mm (width x depth x height).
- The light-emitting surface measures 700 x 25 mm.
- Standard type (a diffusion sheet is included).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,600 K typ. |
| Dimensions | W 726 mm x D 42 mm x H 70 mm |
| Input voltage | 24VDC |
| Power consumption | 140 W max. |
| Polarity & signal | 1, 2, 3: (+) 4, 5, 6: (-) 7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,200 g max. |
| Accessories | User Manual |
Dimensions (mm)
