CCS LNSP2-800SW Line (Convergent Lighting)
Manufacturer: CCS Inc.
Model: LNSP2-800SW
Features
- This Line Light Unit emits white light and measures 826 x 42 x 70 mm (width x depth x height).
- The light-emitting surface measures 800 x 25 mm.
- Standard type (a diffusion sheet is included).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,600 K typ. |
| Dimensions | W 826 mm x D 42 mm x H 70 mm |
| Input voltage | 24VDC |
| Power consumption | 160 W max. |
| Polarity & signal | 1, 2, 3: (+) 4, 5, 6: (-) 7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,500 g max. |
| Accessories | User Manual |

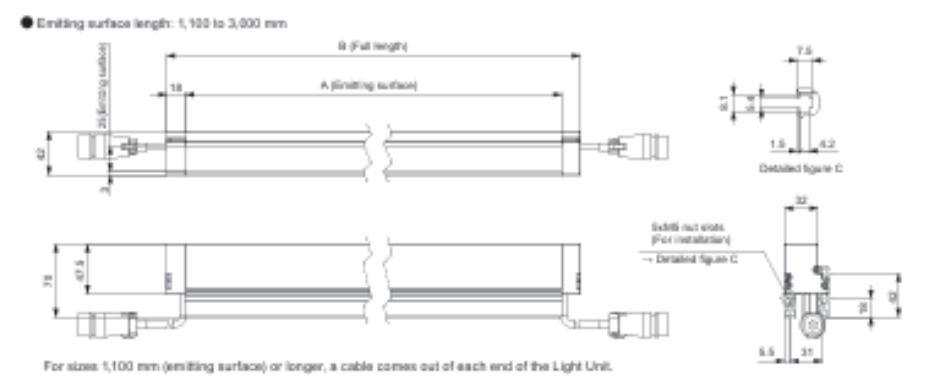

Dimensions (mm)
| Model name | A (Emitting surface) | B (Full length) | Connector | Model name | A (Emitting surface) | B (Full length) | Connector | ||
Standard products | LNSP2-1005SW (HDF) | 100 | 136 | EI connector | Special orders | LNSP2-16005SW (HDF) | 1,600 | 1,636 | Metal connector |
| LNSP2-2005SW (HDF) | 200 | 236 | LNSP2-17005SW (HDF) | 1,700 | 1,736 | ||||
| LNSP2-3005SW (HDF) | 300 | 336 | LNSP2-18005SW (HDF) | 1,800 | 1,836 | ||||
| LNSP2-4005SW (HDF) | 400 | 436 | LNSP2-19005SW (HDF) | 1,900 | 1,936 | ||||
| LNSP2-5005SW (HDF) | 500 | 536 | LNSP2-20005SW (HDF) | 2,000 | 2,036 | ||||
| LNSP2-6005SW (HDF) | 600 | 636 | Metal connector | LNSP2-21005SW (HDF) | 2,100 | 2,136 | |||
| LNSP2-7005SW (HDF) | 700 | 736 | LNSP2-22005SW (HDF) | 2,200 | 2,236 | ||||
| LNSP2-8005SW (HDF) | 800 | 836 | LNSP2-23005SW (HDF) | 2,300 | 2,336 | ||||
| LNSP2-9005SW (HDF) | 900 | 936 | LNSP2-24005SW (HDF) | 2,400 | 2,436 | ||||
| LNSP2-10005SW (HDF) | 1,000 | 1,036 | LNSP2-25005SW (HDF) | 2,500 | 2,536 | ||||
Special orders | LNSP2-12005SW (HDF) | 1,200 | 1,236 | Metal connector | LNSP2-26005SW (HDF) | 2,600 | 2,636 | ||
| LNSP2-13005SW (HDF) | 1,300 | 1,336 | LNSP2-27005SW (HDF) | 2,700 | 2,736 | ||||
| LNSP2-14005SW (HDF) | 1,400 | 1,436 | LNSP2-28005SW (HDF) | 2,800 | 2,836 | ||||
| LNSP2-15005SW (HDF) | 1,500 | 1,536 | LNSP2-29005SW (HDF) | 2,900 | 2,936 | ||||
| LNSP2-30005SW (HDF) | 3,000 | 3,036 |
