CCS Inc.

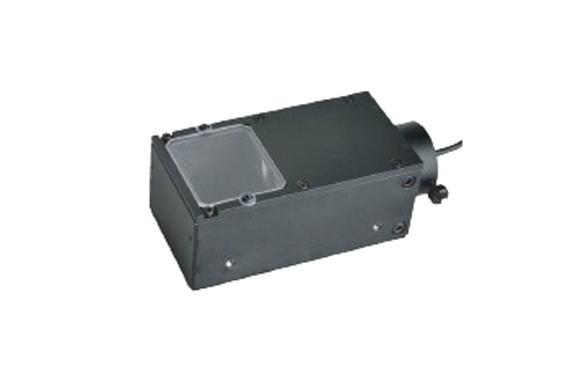

CCS MFU-34X30BL2-24 Coaxial
Manufacturer: CCS Inc.
Model: MFU-34X30BL2-24
Features
- MFU-34X30BL2-24 coaxial light for collimated backlighting.
- Measures W 46 mm x D 110 to 143 mm x H 38 mm, LED emission color blue, Input voltage 24V type.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm |
| Dimensions | W 46 mm x D 110 to 143 mm x H 38 mm |
| Input voltage | 24 VDC |
| Power consumption | 1.7 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Steel sheet, Resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 200 g max. |
| Accessories | Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1, Set of screws (M2 x 2 mm black) x 3, M2 hexagonal wrench x 1 *An aperture (φ1.0 mm) is attached to the light source part when shipped from the factory. *Replacing with one of the additional apertures supplied (φ0.5 mm and φ2.0 mm) allows the light quantity (high / low) and light distribution (wide / narrow) to be changed. |

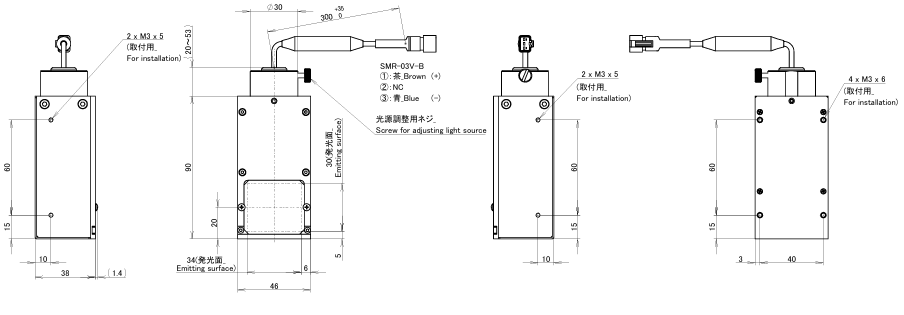

Dimensions (mm)
