CCS Inc.
CCS MSU-10SW2 Coaxial
Manufacturer: CCS Inc.
Model: MSU-10SW2
Features

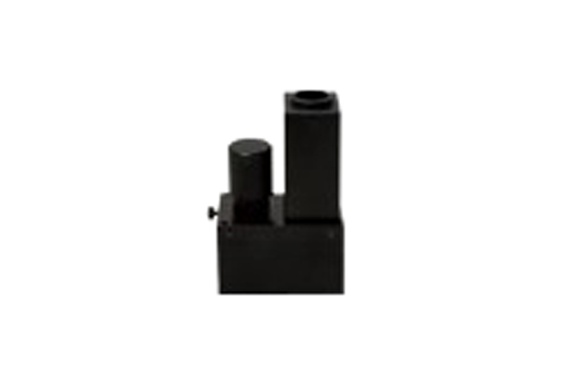

- This Light Unit emits white light and measures 46 x 74 x 116 mm (width x depth x height).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | W 46 mm x D 74 mm x H 116 mm |
| Input voltage | 24VDC |
| Power consumption | 0.4 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum, Acrylic resin, Polyacetal, SPCC |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 275 g max. |
| Accessories | Light-source converging adapters (Slit diameter: 1 mm / 2 mm / 3 mm / 4 mm x 1 each), Hexagonal wrench, Handling Precautions for LED Lights |
Dimensions (mm)
