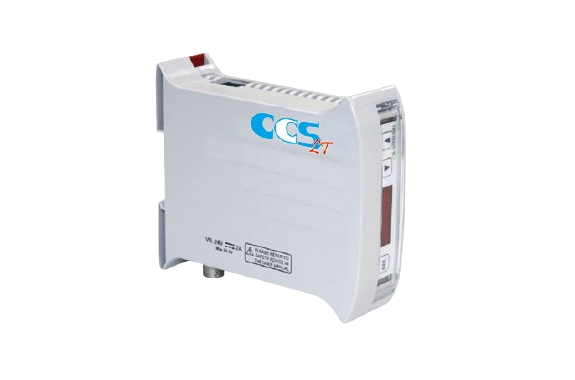

CCS OC-0736-1-ET OLF-LT / OLB-LT Dedicated Controller
Manufacturer: CCS Inc.
Model: OC-0736-1-ET
Features
Dedicated controller for OLF-LT / OLB-LT Series(Organic LED Lights for Machine Vision)
- A predictive maintenance function is provided by automatically recognizing connected lights and accumulating data on lighting usage.
- 24 VDC Input
- Equipped with 1 channel
- Regular Emission, ON/OFF Emission,
- Strobe Emission (With Overdrive Mode)
- Configuration via Ethernet or buttons on the panel
- Strobe Light Emission Time Setting: 100µs to 10 ms (100µs units)
- Light Emission Delay Time Setting: 2µs to 10 ms (100µs units)
- Weight: 300 g max.
Specifications
| Number of channels | 1 channel |
|---|---|
| Drive method | Constant-current system |
| Lighting method | Regular Emission [Continuous], ON/OFF Emission [Switch], Strobe Emission (With Overdrive Mode) [Pulse] |
| Strobe time settings | [Strobe light] 100 µs to 10 ms (100 µs units) |
| Intensity control | Manual: Operation on the front panel External: Command input via TCP/IP or UDP communications(Ethernet) |
| Input voltage | 24 VDC (21.6 to 26.4 V) |
| Power consumption | 12 W [Continuous light emission at time of maximum load ] |
| Lighting delay settings | 2 µs to 10 ms [100 µs units] |
| Lighting delay | [Strobe emission response speed] Max. 10 μs [ON/OFF emission response speed] Max. 100 |
| Trigger | [Trigger cycle] Max. 100 Hz [Trigger input] 3 to 24 VDC input TTL, NPN, and PNP Input impedance (nominal) 8 kΩ(Trigger input) |
| Input current | 1 A [ Input current peak ] |
| Conformed standards | [CE marking] EMC standard: Conforms to EN61000-6-2, EN61000-6 [Environmental regulations] RoHS2 compliant |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85% RH (with no condensation) |
| Storage temperature and humidity | Temperature: – 20 to 60°C, Humidity: 20 to 85% RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 300 g max. |
| Accessories | Wurth 351 Series 2 pins x1, Wurth 361 Series 4 pins x1 |
| Caution | Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode. |
Dimensions (mm)
