CCS Inc.

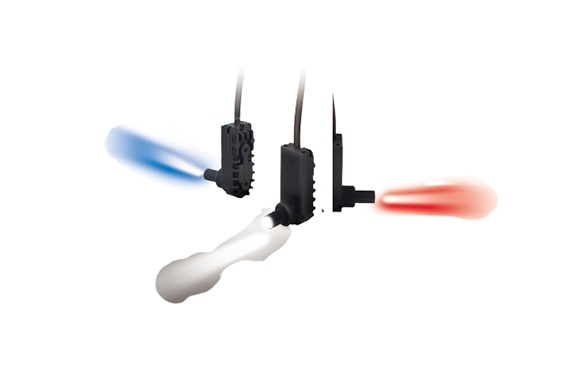

CCS OPS-S Series Spot
Manufacturer: CCS Inc.
Model: OPS-S Series
Features
High-brightness type with unique lens design for best-in-class brightness
- With conventional spot lighting, constant current driving is the most common, and no strobe controllers were capable of overdrive.
- With the OPS-S Series, the controller is any general-purpose 12 V power, allowing for overdrive functionality with strobe controllers.
- With the highly uniform type, uniformity is improved thanks to a low-magnification lens with a short working distance.
- In addition, the low brightness requirements of mirror-like workpieces with high reflectance can be met and high intensity resolutions are ensured.
- Highly uniform types offer about 1/10 the brightness of high-brightness types.
- *Applicable controller: OPPF Series
High-brightness, high-uniform types for optimization with telecentric lenses
- Optimized for the optical system of telecentric lenses, the OPS-S Series offers both high brightness and high uniformity..
- High-brightness types are available for high-magnification, long-distance lenses, and highly uniform types are available for low-magnification, short-range lenses.
- With no bright points in the center of illumination (hot spots) even with the high-brightness type, no light axis deviation occurs due to the use of original lenses.
Refer to the chart below when specifying a type.
