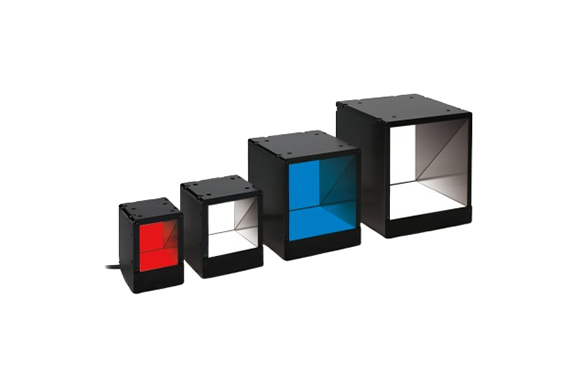

CCS OPX Series Coaxial
Manufacturer: CCS Inc.
Model: OPX Series
Features
- OPX Series coaxial lighting is equipped with a proprietary prism sheet on the surface light source for a narrow directivity angle (half-value angle of ±17°).
- Suppressing the spread of light allows for high-brightness and highly directional illumination.
- Also, highly uniform illumination becomes possible from short distances, a task conventional coaxial illumination models struggle with.
- This is especially helpful with applications requiring uniformity such as detecting fine scratches and dents.
Improved light-emitting surface uniformity
- With coaxial lighting, the light from the light source passes through a half mirror twice, causing the light that reaches the camera to be 1/4 or less the original brightness.
- As a result, bullet-shaped LEDs have become the mainstay with higher brightness requirements.
- The OPX Series includes a prism sheet built in to the light source that allows for illumination with a narrow directivity angle.
- Equipped with SMD-type LEDs offering higher light-emitting surface uniformity than bullet-shaped LEDs, the light is condensed in front of the device, significantly improving brightness.
- In addition, the optimized arrangement of LEDs allows for reduced brightness deterioration of the peripheral areas.
