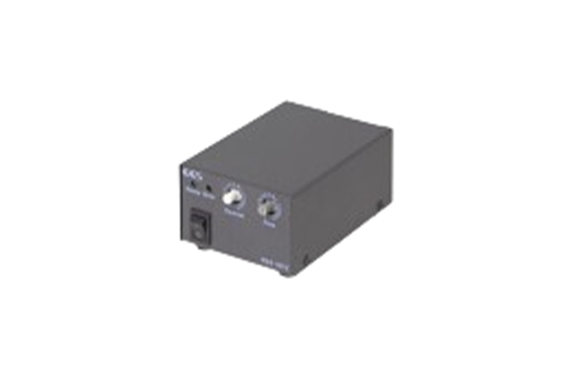

CCS PD2-1024(A) Digital Control Units
Manufacturer: CCS Inc.
Model: PD2-1024(A)
Features
- This Digital Control Unit can be used for LED Light Units with an input voltage of 24 V within a total power consumption of 9 W. It operates with 100 to 120 VAC input.
- It measures 86 x 120 x 54 mm (width x depth x height).
Specifications
| Dimensions | W 86 mm x D 120 mm x H 54 mm |
|---|---|
| Applicable Light Unit (output ratings) | 24 V/9 W |
| Number of channels | 1 channel |
| Drive method | Constant lighting |
| Lighting method | Continuous lighting |
| Intensity control method | PWM control |
| Intensity control | Use of the intensity control knobs on the front panel (Coarse and Fine, 16 steps for each knob) |
| PWM frequency | 62.5 kHz |
| Frequency | 50/60 Hz |
| Input voltage | 100 to 120 VAC |
| Power consumption | 27 VA typ. |
| Output voltage | 24VDC |
| Output current | 0.4 A |
| Inrush current | 15 A (at 100 VAC) *From a cold start |
| Error detection display | The Error indicator lamp on the front panel is lit when overcurrent is detected |
| Error detection output | External control connector pin 14(OCP): Open in normal condition, Open-collector ON when an overcurrent is detected |
| Over current protection | Yes |
| External control input | Insulation: Not insulated with a Control Unit Circuit: Pull-up of +5 V internally by use of resistor (4.7 kΩ), HS-CMOS input |
| Output connector | SMP-03V-BC (1: Output (+), 2: NC, 3: Output (-)) |
| External control connector | Manual ON/OFF control: Phone jack (Φ3.5) External control: 15-pin D-sub plug with M2.6 mm screws |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 700 g |
| Material | Steel plate t1.0 |
| Accessories | Instruction Guide, Optional Cable Operation Guide |

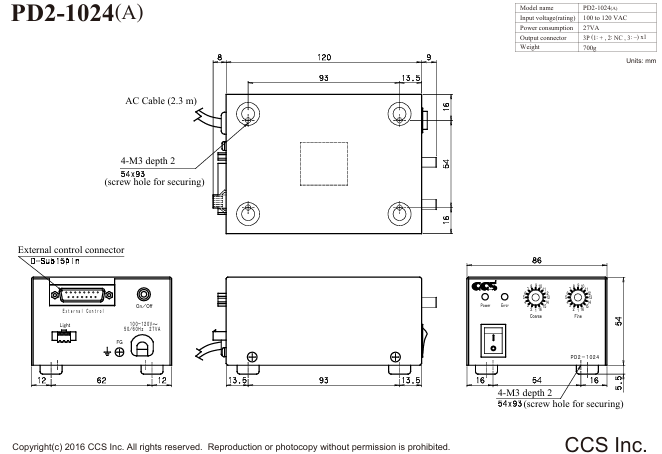

Dimensions (mm)
