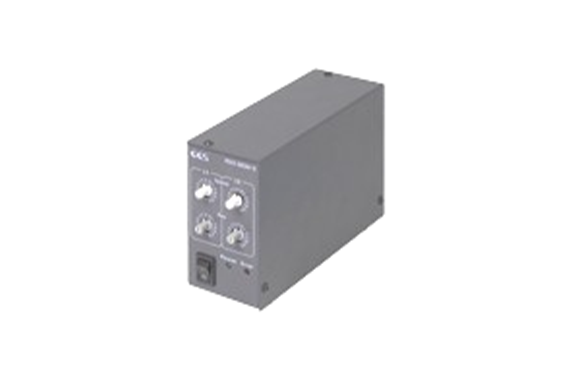

CCS PD2-3024-2(A) Digital Control Units

Manufacturer: CCS Inc.
Model: PD2-3024-2(A)

Features

This 2-channel Digital Control Unit can be used for LED Light Units with an input voltage of 24 V within a total power consumption of 28 W.
It operates on a 100 to 240 VAC input and measures 62 x 170 x 110 mm (width x depth x height).

Specifications

Dimensions	W 62mm x D 170mm x H 110mm
Applicable Light Unit (output ratings)	24 V/28 W
Number of channels	2 channels
Drive method	Constant lighting
Lighting method	Continuous lighting
Intensity control method	PWM control
Intensity control	Use of the intensity control knobs on the front panel (Coarse and Fine, 16 steps for each knob)
PWM frequency	62.5 kHz
Frequency	50/60 Hz
Input voltage	100 to 240 VAC
Power consumption	78 VA typ.
Output voltage	24VDC
Output current	1.1 A (total for 2 channels)
Inrush current	15 A (at 100 VAC) *From a cold start
Error detection display	The Error indicator lamp on the front panel is lit when overcurrent is detected
Error detection output	External control connector pin 14(OCP): Open in normal condition, Open-collector ON when an overcurrent is detected
Over current protection	Yes
External control input	Insulation: Not insulated with a Control Unit Circuit: Pull-up of +5 V internally by use of resistor (4.7 kΩ), HS-CMOS input
Output connector	SMP-03V-BC (1: Output(+), 2: NC, 3: Output(-)) x 2 SMP-04V-BC (1: Output(+), 2: NC, 3: Output(-), 4: Fan(GND))
External control connector	Manual ON/OFF control: Phone jack (Φ3.5) x 2 External control: 15-pin D-sub plug with M2.6 mm screws
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	1,100 g max.
Material	Steel plate t1.0
Accessories	2m long 3-prong AC power cord with ground terminal, Instruction Guide, Optional Cable Operation Guide
