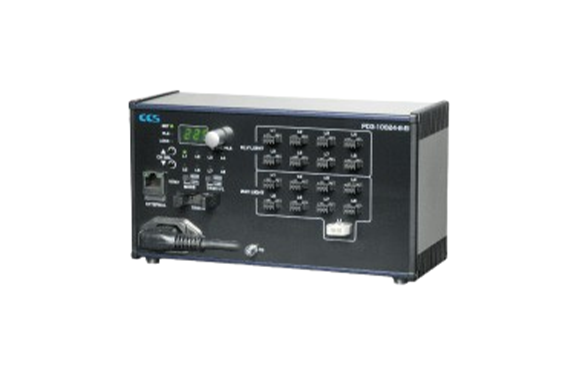

CCS PD3-10024-8-EIPNP(A) Digital Control Units

Manufacturer: CCS Inc.
Model: PD3-10024-8-EIPNP(A)

Features

This digital control unit can be used for LED light units with an input voltage of 24 V within a total power consumption of 95 W.
Connection with the HLV3/HLV2 series spot lights is also available.
This Control Unit operates on a 100 to 240 VAC input and measures 220 x 82.6 x 120 mm (width x depth x height).
External control through Parallel communications, external trigger signal communication PNP input model.

Specifications

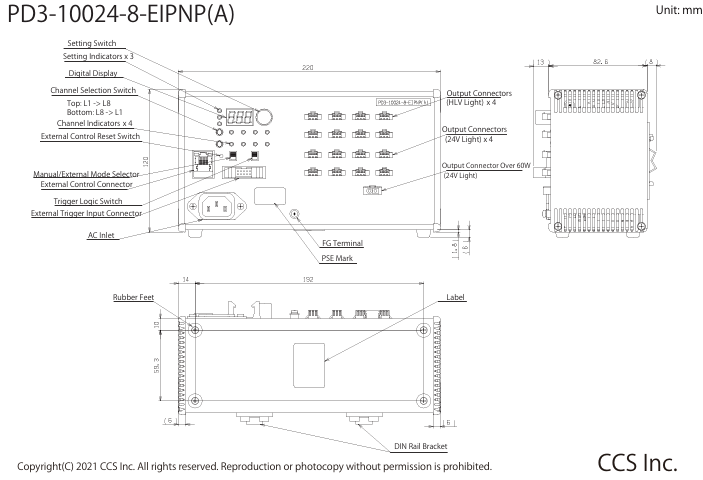

Dimensions	W 220 mm x D 82.6 mm x H 120 mm
Applicable Light Unit (output ratings)	Light Units with 24 VDC input, HLV3/HLV2 series (Spot Light) Total for 8 channels: 95 W (EL connector: one 95 W connector)
Number of channels	8 channels
Drive method	24V LIGHT connectors: Constant-voltage system, HLV LIGHT connectors: Constant-current system
Lighting method	Constant/Strobe lighting
Intensity control method	24V LIGHT connectors: PWM control and lighting time control, HLV LIGHT connectors: Variable-current control
Intensity control	Manual: 256-step using the front setting switch External: Command input via TCP/IP or UDP/IP communication
PWM frequency	125 kHz
Frequency	50/60 Hz
Input voltage	100 to 240 VAC (+10% -15%)
Power consumption	130 VA
Output voltage	24 VDC
Output current	Total for 8 channels: 3.95 A
Inrush current	15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start
Error detection display	Digital display on the front-panel; OCP: Overcurrent error, EFN: Fan Stop Error, and EID: ID error (HLV3/HLV2-series Spot Lights only)
Error detection output	Command sent when overcurrent output is detected.
Over current protection	Yes
Output connector	SMP-03V-BC x 16, ELR-02V x 1
External control connector	Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: RJ-45 connector
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced cooling
Weight	1,500 g
Material	Aluminium, ABS
Accessories	2m long 3-pin power cord with ground terminal x1 Base Brackets x1 set Instruction Guide x1
Program	[Sample Program] Sample programs are available. See the Software Tools tab.
