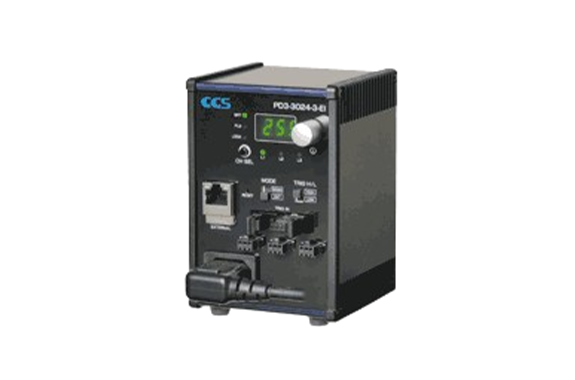

CCS PD3-3024-3-EI-PNP(A) Digital Control Units

Manufacturer: CCS Inc.
Model: PD3-3024-3-EI-PNP(A)

Features

This digital control unit can be used for LED light units with an input voltage of 24 V within a total power consumption of 28 W.
This Control Unit operates on a 100 to 240 VAC input and measures 84 x 82.6 x 120 mm (width x depth x height).
External control through Parallel communications, external trigger signal communication PNP input model.

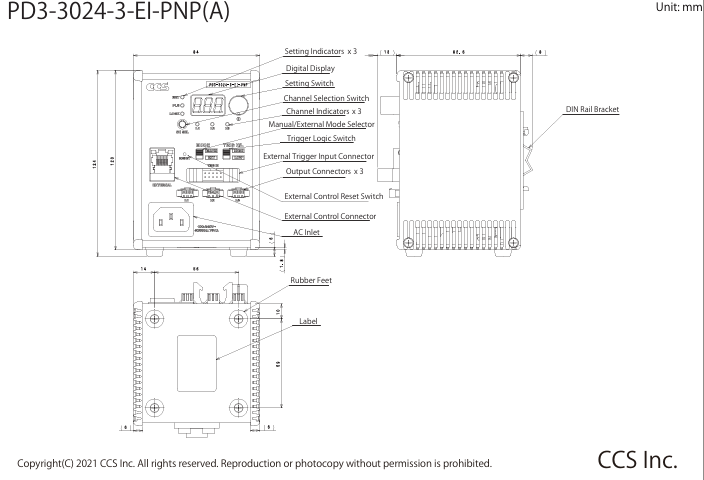

Dimensions	W 84 mm x D 82.6 mm x H 120 mm
Applicable Light Unit (output ratings)	Light Units with 24 VDC input Total for 3 channels: 28 W
Number of channels	3 channels
Drive method	Constant lighting
Lighting method	Constant/Strobe lighting
Intensity control method	PWM control, Lighting time control
Intensity control	Manual: 256-step using the front setting switch External: Command input via TCP/IP or UDP/IP communication
PWM frequency	125 kHz
Frequency	50/60 Hz
Input voltage	100 to 240 VAC (+10% -15%)
Power consumption	78 VA
Output voltage	24 VDC
Output current	Total for 3 channels: 1.1 A
Inrush current	15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start
Error detection display	OCP is displayed on the digital display
Error detection output	Command sent when overcurrent output is detected.
Over current protection	Yes
Output connector	SMP-03V-BC x 3
External control connector	Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: RJ-45 connector
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	600 g
Material	Aluminium, ABS
Accessories	2m long 3-prong AC power cord with ground terminal, Instruction Guide
Program	[Sample Program] Sample programs are available. See the Software Tools tab.
