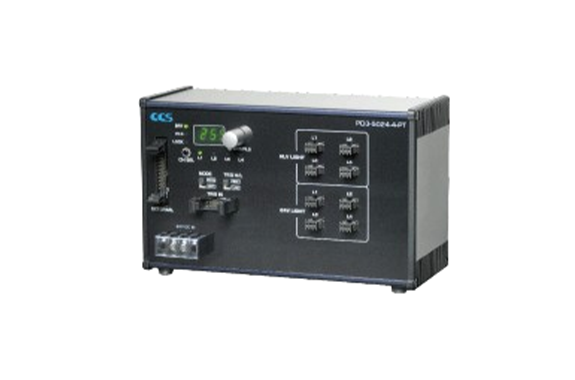

CCS PD3-5024-4-PT-PNP(A) Digital Control Units

Manufacturer: CCS Inc.
Model: PD3-5024-4-PT-PNP(A)

Features

This digital control unit can be used for LED light units with an input voltage of 24 V within a total power consumption of 46 W.
Connection with the HLV3/HLV2 series spot lights is also available.
It operates with 24 VDC input. It measures 197 x 82.6 x 120 mm (width x depth x height).
External control through Parallel communications, external trigger signal communication PNP input model.

Specifications

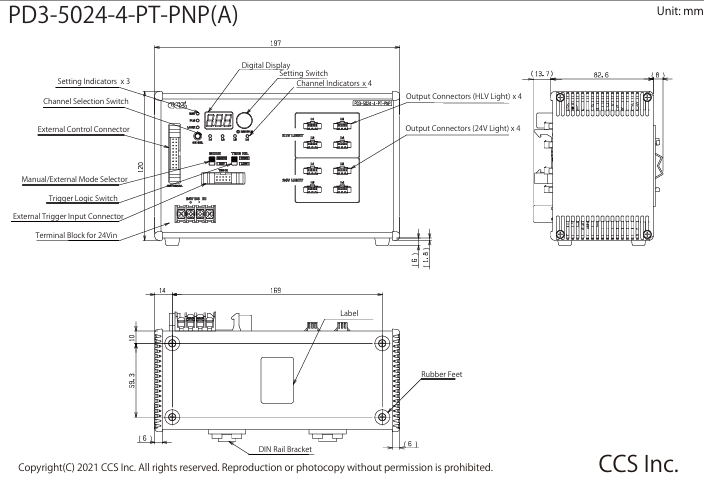

Dimensions	W 197 mm x D 82.6 mm x H 120 mm
Applicable Light Unit (output ratings)	Light Units with 24 VDC input, HLV3/HLV2 series (Spot Light) Total for 4 channels: 46 W
Number of channels	4 channels
Drive method	24V LIGHT connectors: Constant-voltage system, HLV LIGHT connectors: Constant-current system
Lighting method	Constant/Strobe lighting
Intensity control method	24V LIGHT connectors: PWM control and lighting time control, HLV LIGHT connectors: Variable-current control
Intensity control	Manual: 256-step using the front setting switch External: 8-bit input (B0 to B7), write pulse (BRTWR), and channel selection (CHSEL0 to CHSEL2)
PWM frequency	125 kHz
Frequency	50/60 Hz
Input voltage	24 VDC (21.6 to 26.4 V)
Power consumption	52 W max.
Output voltage	24 VDC
Output current	Total for 4 channels: 1.91 A
Error detection display	Digital display on the front-panel; OCP: Overcurrent error, EFN: Fan Stop Error, and EID: ID error (HLV3/HLV2-series Spot Lights only)
Error detection output	NPN transister output to the External control connector pins between 19(OC) and 20(OE); open for normal operation, closed for overcurrent detection.
Over current protection	Yes
Output connector	SMP-03V-BC x 8
External control connector	Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: MIL connector (MIL-C-83503 compliant), 20 pins
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced cooling
Weight	850 g
Material	Aluminium, ABS
Accessories	Instruction Guide, Brackets for the PD3-series Control Unit (BK-PD3) (including 2 brackets)
