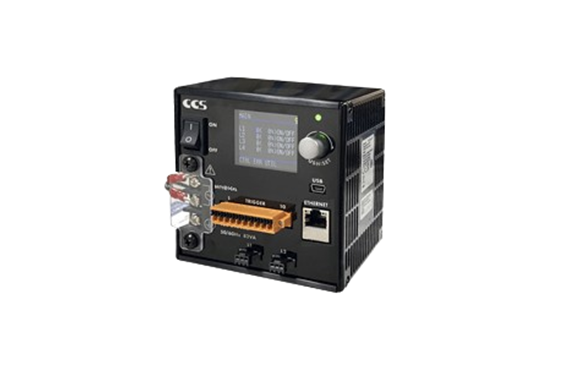

CCS PD4-3024A-2-P Digital Control Units

Manufacturer: CCS Inc.
Model: PD4-3024A-2-P

Features

The PD4-3024A-2-P digital control unit can connect 24V input LED lighting with a total power consumption of up to 30W.
This control unit operates on an AC100-240V.
External control protocol is Parallel communication type.
Measures 102mm x 90mm x 100mm (width x depth x height).

AC power cable will be included in the standard model.
AC power cable will not be included in the model with “-NC” at the end.
The product with the model name with “-NC” at the end conforms to the KC standards.
For customers in Korea and Europe, please select model name with “-NC” at the end.

Specification

Applicable Light Unit (output ratings)	Light units with 24 VDC input, Total channels: 30 W (SM connector: one 30 W connector)
Number of channels	2 channels
Drive method	Constant lighting
Lighting method	Continuous / Strobe lighting (no overdrive)
Intensity control method	Continuous lighting: PWM control / Strobe lighting: PWM control and lighting time control
Light intensity setting	Select from 1,024 levels and 256 levels *The PD4-A Series has 256 levels when selecting PWM frequency 500 kHz.
PWM frequency	Select from 125 kHz and 500 kHz
Input power	AC 100 – 240 V (± 10 ％), 50/60 Hz
Power consumption	82 VA
Inrush current	30 A (at 100 VAC), 70 A (at 240 VAC)
External control method	Parallel control, USB communication
Over current protection	Yes
Overvoltage category	Category II
External control connector	[Parallel input/output] FX2B-40PA-1.27DSA(71) (Hirose Electric) 40 poles A1 to A19: Input, A20: Input common, B1 to B19: Output, B20: Output common Function allocation can be changed and checked from USB[USB] Mini-B
Conformed standards	[Compatible standards] CE^, UKCA, KC (model number ending with “-NC” only)[Environmental regulations] RoHS compliant CE compliance is conditional for PWM frequency 500 kHz. For details, please refer to the operation manual.
Trigger input voltage	5 – 24 V
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	0.62 kg max.
Material, coating, and surface finish	Steel sheet, aluminum, resin, black alumite
Accessories	Hardware manual x 1 Power Terminal Block Cover x 1 M4 screws for the cover x 2 AC Power Cable (2m-long 3-prong) with ground terminal^1 x 1 Trigger Terminal Block^2 x 1
