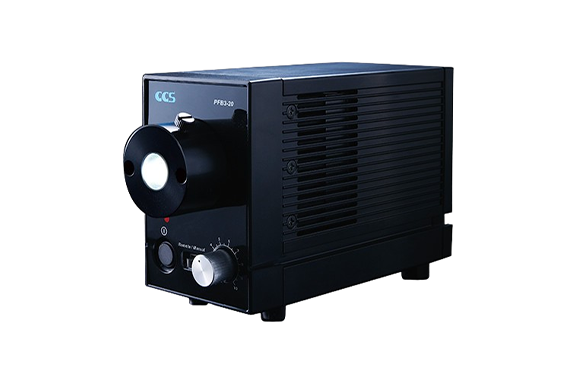

CCS PFB3-20SW-SJT-TE(A) Light Source Units
Manufacturer: CCS Inc.
Model: PFB3-20SW-SJT-TE(A)
Features
- LED light source PFB3-20SW-SJT-TE(A). Serial type external control.
- It measures 70 x 150 x 100 mm (width x depth x height). (Not including parts such as connectors, knobs, and feet.)
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,700 K typ. |
| Dimensions | W 70 mm x D 150 mm x H 100 mm (not including connectors, knobs, legs, and other projections) Please refer to the “Dimensions” tab for light guide adapter dimensions chart. |
| Number of channels | 1 channel |
| Drive method | Constant-current system |
| Lighting method | Continuous lighting |
| Intensity control method | Variable-current control |
| Intensity control | Manual Continuous control using the intensity control knob Remote 256-step light intensity using RS-232C communications command (default value: 0)Using the Remote/Manual switch on the front panel |
| Input voltage | 24 VDC (rated) 21.6 to 26.4 VDC (range) |
| Power consumption | 18 W typ. |
| Insulation withstand voltage (input-FG) | Insulation resistance: 500 VDC, 1M Ω min. Withstanding voltage: 250 VAC for one minute, cutoff current: 10 mA |
| Case material | Aluminum alloy |
| Error detection display | An error indicator lamp on the front panel flashes (0.5 sec) and output stops |
| Input connector | DC jack for power supply, Terminal block for power supply, External Control connector (9-pin D-sub) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 25 to 85%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Forced air cooling, Intake vents: sides, Exhaust vents: rear |
| Weight | 1,200 g max. |
| Accessories | User Manual |
| Caution | Be sure to confirm the specifications of the light guide before use. |
