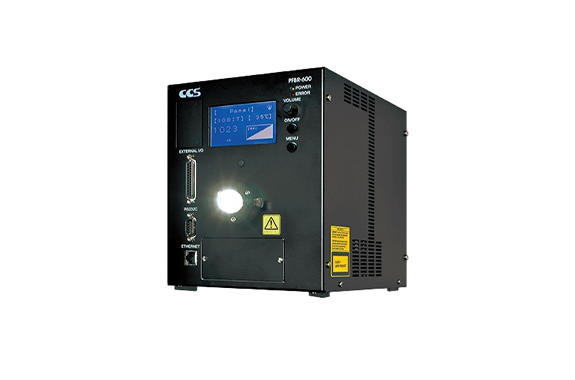

CCS PFBR-600SW2-LL Light Source Units

Manufacturer: CCS Inc.
Model: PFBR-600SW2-LL

Features

PFBR-600 renewal PFBR-600SW2-LL provides high output to easily replace 350 W metal halide or xenon flash light sources.
Output increased more than 1.4x that of conventional products. ^*1
Stable light output is maintained over long periods with a service life of 23,000 hours^*2
Continuous lighting and strobe lighting (internal trigger mode and external trigger mode) can be selected.
Available control modes include manual control and external control over Ethernet, parallel communication, and serial communication.
High-speed response 1 µs or faster

*1 Comparison with conventional product PFBR-600SW-LL
*2 Expected service life at 50% maximum light quantity when the feedback control function is enabled.

Specifications

Emitting color	White
Correlated color temperature	5,500 K typ.

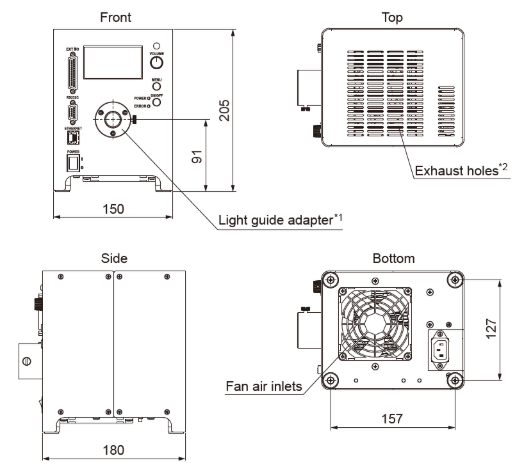

Dimensions	W 175 mm x D 270 mm x H 215 mm
Applicable fiber bundle diameter	Φ 6 – Φ 14 mm
Light distribution angle	Total angle of 30°
Number of channels	1 channel
Drive method	Constant-current system
Intensity control method	Variable-current control
Input power	100 to 240 VAC (±10%), 50/60 Hz
Power consumption	410 VA at 100 V input, 420 VA at 240 V input
Inrush current	40 A from a cold start
Ground leakage current	0.5 mA max. (240 VAC, 60 Hz, with 100% load)
Insulation withstand voltage(input-output, input-FG)	1,500 VAC for one minute, cutoff current: 10 mA, 500 VDC/20 MΩ min.
Conformed standards	[Compatible standards] CE, UKCA EN 60825-1, BS EN 60825-1, IEC60825-1, IEC62471(High risk) Laser Classifiaction：Class 1 [Environmental regulations] RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation)
Storage temperature and humidity	Temperature: -15 to 60°C, Humidity: 20 to 85%RH (with no condensation)
Cooling method	Forced cooling
Weight	6,600g max.
Material, coating, and surface finish	Aluminum alloy (black alumite)
Accessories	Instruction guide, 2-m 3-prong AC power cable with ground terminal
Program	[Sample Program] Sample programs are available. See the Software Tools tab.
