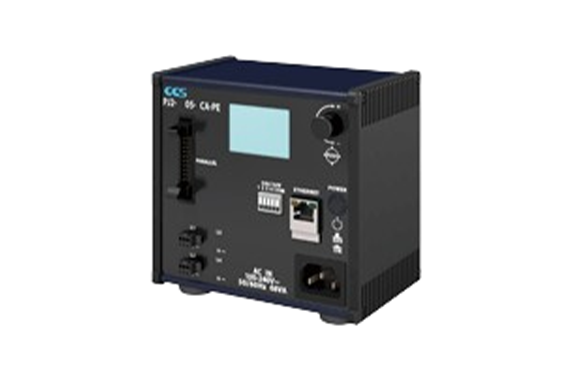

CCS PJ2-1505-2CA-PE Control Units [for the HLV Series]
Manufacturer: CCS Inc.
Model: PJ2-1505-2CA-PE
Features
- Dedicated Analog Control Units for the Spot Light HLV series.
- Can be controlled manually or via Ethernet or parallel communications.
- 2-channel Light Unit output types.
- It measures 130 x 82.6 x 119.6 mm (width x depth x height).
Specifications
| Applicable Light Unit (output ratings) | HLV series Spot Lights (The type of Spot Light is automatically detected.) |
|---|---|
| Number of channels | 2 channels |
| Drive method | Constant-current system |
| Lighting method | Continuous lighting |
| Intensity control method | Variable-current control |
| Frequency | 50/60 Hz |
| Input voltage | 100 to 240 VAC (+10%, -15%) |
| Power consumption | 38 VA max. |
| Output voltage | 5.5 VDC (ratings) |
| Output current | 1,000 mA max./channel (Depends on the maximum input current of the Spot Light.) |
| Inrush current | 15 A (at 100 VAC), 36 A (at 240 VAC) from a cold start |
| Ground leakage current | 3.5 mA max. (264 VAC, 60 Hz, with no load) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 700 g max. |
| Material | Material: Aluminum and resin, Surface processing: Blue alumite |
| Accessories | Instruction guide, 2-m 3-prong AC power cable with ground terminal |
| Program | [Sample Program] Sample programs are available. See the Software Tools tab. |

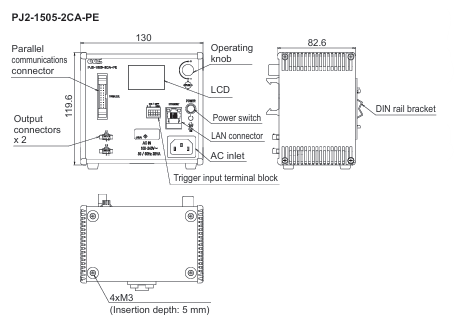

Dimensions (mm)
