CCS Inc.

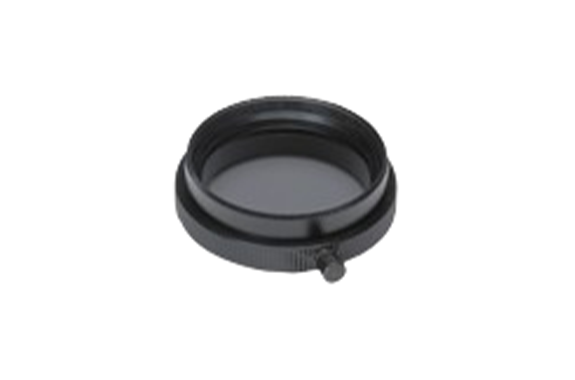

CCS PL-30-NL Filters
Manufacturer: CCS Inc.
Model: PL-30-NL
Features
- Polarizing plate installed on the lens filter thread part of lens.
- Eliminates surface glare on the workpiece when used together with a polarizing plate installed on the Light Unit.
- The models with a name that ends with “-NL” have a locking mechanism.
- Compatible with a lens filter thread diameter of M30.5 x P0.5.
Specifications
| Dimensions | Outer diameter 35.5 mm, Inner diameter 32.0 mm, Height 12 mm |
|---|---|
| Screw hole diam. x Screw pitch | M30.5 x P0.5 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 25 g max. |
| Notes | Use this filter together with a Polarizing Plate mounted on the Light Unit. This filter has a locking mechanism. |
Dimensions (mm)
