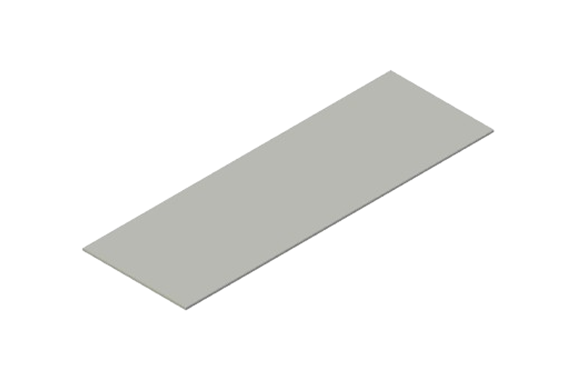

CCS PL-LB-nX100-HO Polarizing Plates [For LB Series]
Manufacturer: CCS Inc.
Model: PL-LB-nX100-HO
Features
- Polarizing plate for LB Series models with an emitting width of 100 mm PL-LB-nX100-HO (n = 200 to 2700).
- These plates are used to linearly polarize the light.
- Use the polarizing plate in conjunction with a polarizing filter (PL Series, PL2 Series) mounted to the lens to prevent light reflection.
- Polarization direction is parallel with respect to the long side.
Specifications
| Conformed standards | RoHS |
|---|---|
| Weight | Contact us |
| Caution | The polarizing plate may discolor due to the output of the light. Regular replacement is recommended. There may be a gap in the division point of the polarizing films attached to the plate. Air bubbles may form between the polarizing film and protection plate. The polarizing plate has a front side and a back side. Install the plate with the film side facing the inspection object. When n ≥ 700 for the PL-LB-HO Series, the film on the polarizing plate has seams. For detailed information, refer to the corresponding drawings. The attachment of the film to the resin plate may be affected by changes in the environment, but this does not impact the function or performance. |
| Notes | Total light transmittance: 38% Polarization: 99% Please confirm the size of the light unit to select the correct model. Please contact us for 3D drawings. |

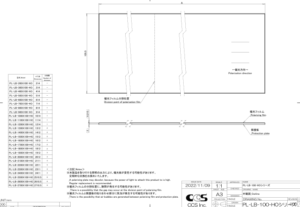

Dimensions (mm)
