CCS Inc.

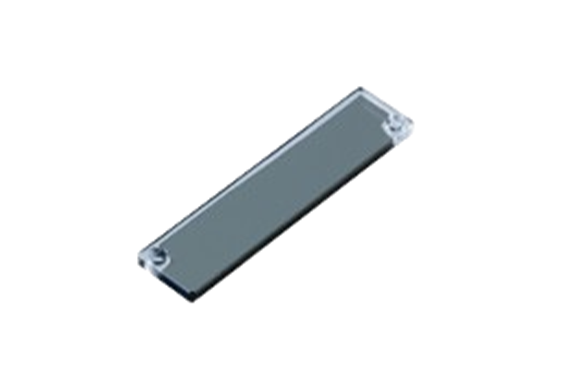

CCS PL-LDL2-19X4-HO Polarizing Plates [For Bar Lights]
Manufacturer: CCS Inc.
Model: PL-LDL2-19X4-HO
Features
- For the LDL2-19X4-series Bar Lights.
- This is a bar-type Polarizing Plate.
- Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.
-HO: Light is polarized parallel to the longer edge of the plate.
-VE: Light is polarized parallel to the shorter edge of the plate.
Specifications
| Dimensions | W 28 mm x D 6.4 mm x H 2 mm |
|---|---|
| Heat resistant temperature | 60℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 1g max. |
| Accessories | Operation Guide, M2x6 low-head screws x 3 |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL2-19X4 |

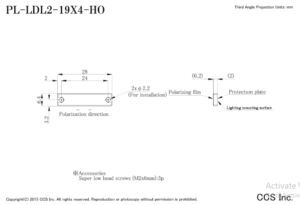

Dimensions (mm)
