- CCS PL-LDL2-74X30-WGFHO Polarizing Plates [For IR Series Infrared Lights (over 1000-nm type)]
CCS Inc.

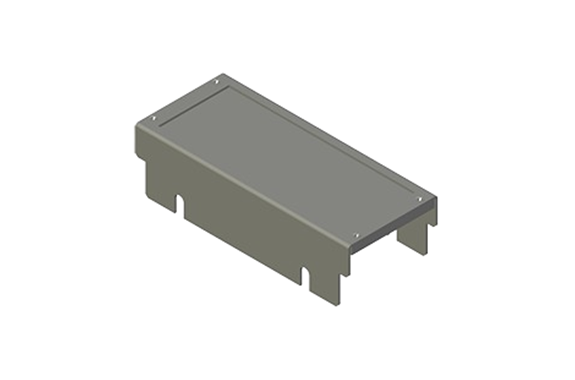

CCS PL-LDL2-74X30-WGFHO Polarizing Plates [For IR Series Infrared Lights (over 1000-nm type)]
Manufacturer: CCS Inc.
Model: PL-LDL2-74X30-WGFHO
Features
- Polarizing Plates for LDL2-74X30IR Series
- Use with a polarizing filter to remove the light’s surface reflection.
- Light is polarized parallel to the longer edge of the plate.
Specifications
| Dimensions | Width 85mm x Depth 35.6mm x Height 23.3mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Material | Glass, A5052 |
| Caution | Please use this product with CCS LED lighting only. Please check the applicable model and use it according to the instruction manual. Air bubbles may form between the polarizing film and the protective plate. |

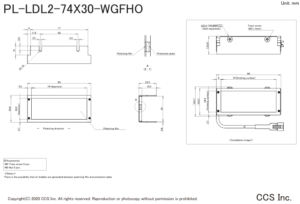

Dimensions (mm)
