CCS Inc.

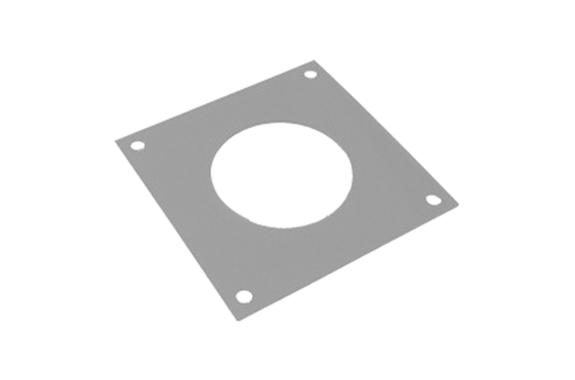

CCS PL-SQR-56 Polarizing Plates [For Ring Lights]
Manufacturer: CCS Inc.
Model: PL-SQR-56
Features
- For the SQR-56-series Ring Lights.
- Ring type polarizing plate.
- Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.
Specifications
| Dimensions | W 54 mm, D 54 mm, Inner diameter 30 mm, Height 0.8 mm |
|---|---|
| Transmission | 30% |
| Heat resistant temperature | 60℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 5 g max. |
| Accessories | Fixing screws x 5, Operation Guide |
| Caution | The shape or color of the Polarizing Plate may change due to heat in the application environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: SQR-56 |

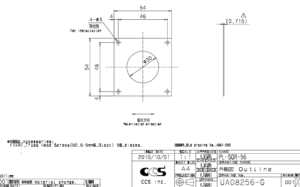

Dimensions (mm)
