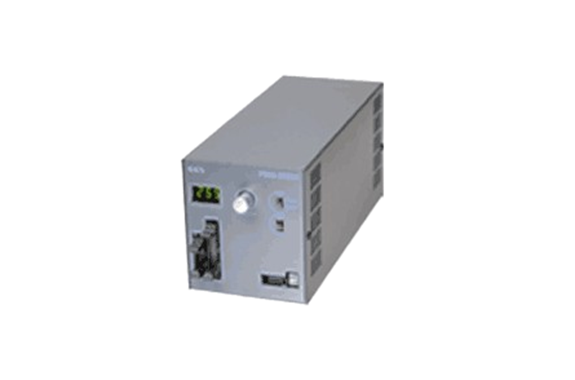

CCS PSB3-30024 High-Capacity Analog Control Unit

Manufacturer: CCS Inc.
Model: PSB3-30024

Features

This high-capacity Analog Control Unit is provided with three external control methods: analog, serial, and parallel control.
It operates on a 100 to 240 VAC input and measures 97 x 245 x 110 mm (width x depth x height).

Specifications

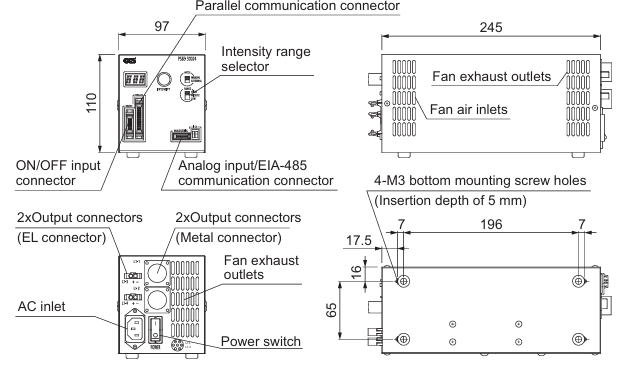

Dimensions	W 97 mm x D 245 mm x H 110 mm
Applicable Light Unit (output ratings)	24 V/300 W
Number of channels	1 channel
Drive method	Constant-voltage system
Lighting method	Continuous lighting
Intensity control method	Variable-voltage control
Intensity control	Manual: Set any of 256 steps with the setting switch. Press and hold the switch for 2 seconds to lock the light intensity value. External Parallel communication: 8-bit intensity value setting (B0 to B7) and write signal (WR) Serial communication: Command input via EIA-485 communication Analog input: Analog voltage (0 V to +5 V)
Frequency	50/60 Hz
Input voltage	100 to 240 VAC (±10% – 15%)
Power consumption	410 VA typ.
Inrush current	40 A * From a cold start
Error detection display	Err is displayed on the digital display.
Error detection output	Transistor output through external control connector. Normal operation: Open, Overcurrent output detected: Closed
Over current protection	Yes
Over voltage protection	Yes
Output connector	SRCN2A16-7S (1 to 3: output (+), 4 to 6: output (-), 7: NC) x 2 and ELR-02V x 2
External control connector	Parallel communications connector (20-pin MIL-C-83503 compliant), ON/OFF input connector (10-pin MIL-C-83503 compliant), and EIA-485 communications/analog input connector (e-CON compliant)
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced air cooling
Weight	2,300 g
Material	Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 1.6 mm, N3 (leather tone)
Accessories	Instruction Guide, 2m long 3-prong AC power cord with ground terminal, Two locking Keys
Program	[Sample Program] Sample programs are available. See the Software Tools tab.
