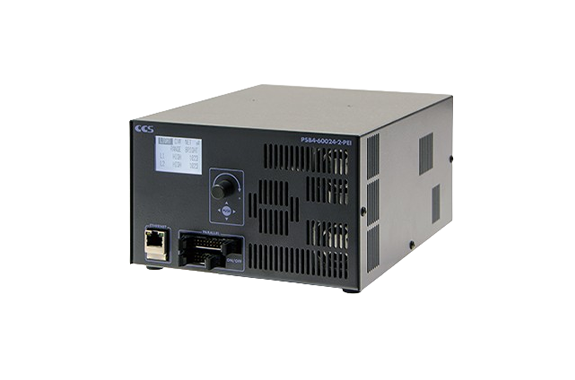

CCS PSB4-60024-2-PEI High-Capacity Analog Control Unit
Manufacturer: CCS Inc.
Model: PSB4-60024-2-PEI
Features
- This Constant-Voltage Analog Control Unit operates on a 100 to 240 VAC input and measures 179 x 249 x 114.5 mm (width x depth x height).
- Ethernet and parallel communications are available.
Specifications
| Dimensions | W 179 mm x D 249 mm x H 114.5 mm |
|---|---|
| Applicable Light Unit (output ratings) | Metal connector (L1-1, L1-2/L2-1,L2-2): 24 V, 300 W (1 connector 300 W or less) EL connector (L1-3, L1-4/L2-3,L2-4): 24 V, 300 W (1 connector 150 W or less) All 1 connectors total : 300 W or less (same as L2 connectors) |
| Number of channels | 2 channels |
| Drive method | Constant lighting |
| Lighting method | Continuous lighting |
| Intensity control method | Variable-voltage control |
| Frequency | 50/60 Hz |
| Input power | 100 to 240 VAC (+10% – 15%) |
| Power consumption | 765 VA typ. |
| Output current | 12.5 A/channel, Total for 2 channels:25 A |
| Inrush current | 55 A / 95 A (promary/secondary values, at 100 VAC), 132 A / 132 A promary/secondary values, (at 240 VAC) from a cold start |
| Ground leakage current | 3.5 mA max. (264 VAC, 60 Hz, with no load) |
| Insulation withstand voltage (input-FG) | 1,500 VAC for one minute, Cutoff current: 20 mA 500 VDC, 20 MΩ min. |
| Output connector | SRCN2A16-7S x 4, ELR-02V x 4 |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation) Altitude: 2000 m max. |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Forced cooling |
| Weight | 4100 g max. |
| Material | Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 1.6 mm, N3 (leather tone) |
| Accessories | Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal |
| Program | [Sample Program] Sample programs are available. See the Software Tools tab. |

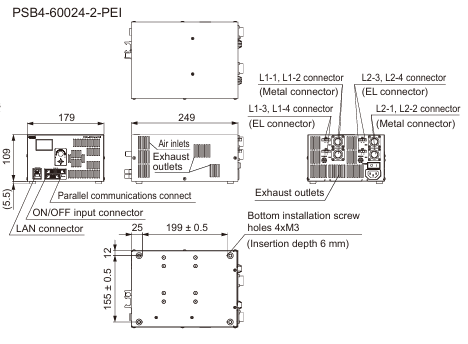

Dimensions (mm)
