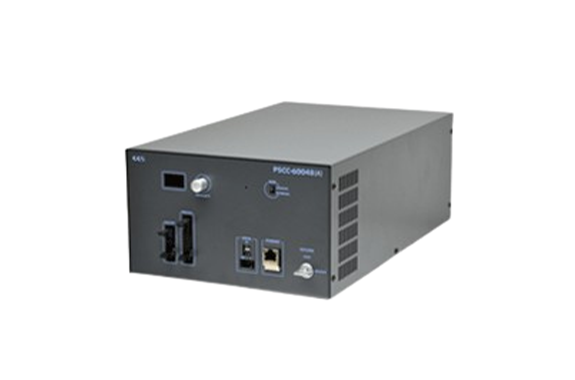

Manufacturer: CCS Inc.
Model: PSCC-60048(A)

Features

• This high-capacity Analog Control Unit adjusts the light intensity with variable current.
• Ethernet, EIA-485 and Parallel communications protocols are all supported for external control. It operates on a 100 to 240 VAC input and measures 225 x 371 x 131 mm (width x depth x height).

Note1: Light intensity can be adjusted for each Light Unit circuit.
Note2: Lighting ON/OFF logic can be selected by pushing the setting switch while turning ON the power to the Control Unit.

Specifications

Dimensions	W 225 mm x D 371 mm x H 131 mm
Applicable Light Unit (output ratings)	43 VDC max., 602 W max. (including 50 W max. for fans)
Number of channels	1 channel
Drive method	Constant-current system
Lighting method	Continuous lighting
Intensity control method	Variable-current control
Intensity control	Set the Manual/External switch (MODE) to Manual. Set any of 256/1000 steps via the setting switch (Parallel communications: Adjustment to 256 steps only). Press and hold the switch for 2 seconds to lock the light intensity value.
Frequency	50/60 Hz
Input voltage	100 to 240 VAC (+10%, -15%)
Power consumption	750VA typ.
Inrush current	55 A (at 100 VAC), 84 A (at 240 VAC) from a cold start
Error detection display	On the Digital display
Error detection output	Parallel communication: Output at pins 19 and 20: Photocoupler insulation, open collector output, short circuit at alert (load current of 10 mA or less)EIA-485 communication: Checked by using a status command through EIA-485 communication Ethernet communication: Checked by using a status command through TCP/IP or UDP/IP communication
Output connector	Metal connector PRC04-12A26S-37F (Tajimi Electronics co.,ltd)
External control connector	ON/OFF control (available in any light intensity control modes): MIL connector, 10 pins XG4A-1031 (manufactured by OMRON) Light intensity control (for Parallel communications): MIL connector, 20 pins XG4A-2031 (manufactured by OMRON) Light intensity control (for EIA-485 communications): e-con connector, 3 pins Light intensity control (for Ethernet communications): RJ-45 connector
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced air cooling
Weight	7000 g
Material	Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 2.0 mm, N3 (leather tone)
Accessories	Instruction Guide, 2m long 3-prong AC power cord with ground terminal, Two locking Keys
Program	[Sample Program] Sample programs are available. See the Software Tools tab.

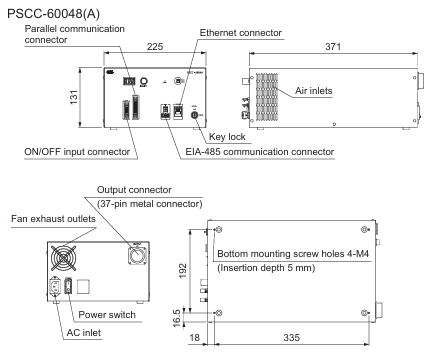

Dimensions (mm)
