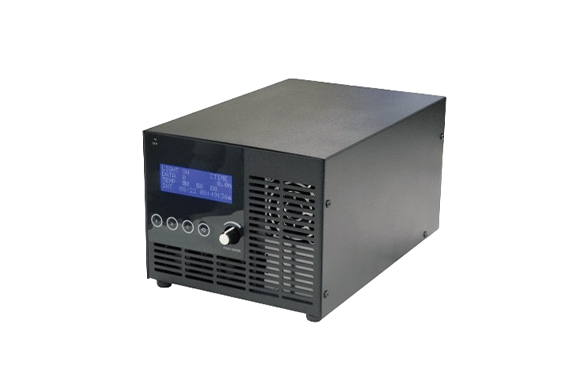

CCS PSCC-J1A-nnn48-0401/0402 Control Units [for CCS AItec]
Manufacturer: CCS Inc.
Model: PSCC-J1A-nnn48-0401/0402
Features
Dedicated Power Supplies for LN-GA and LN-HA Series
- Constant-current power system.
- Light intensity can be set in 256 or 1000 levels with digital setting.
- Provides external light intensity control through parallel.
- RS-232C, and Ethernet communications.
- Detects errors, such as LED burnout, LED overheat, power unit overheat, Control Unit fan stoppage, and abnormal voltage in LED power supply.
- Selectable according to the output capacity of lighting(nnn = 300, 600, 10C, 15C).
- Please refer to “Connection image(LN-GA/LN-HA) ”.
Note
- Available only in specific regions. Please contact your CCS sales representative for more information.
Specifications
| LN-G Series | PSCC-J1A-30048-0401 | PSCC-J1A-60048-0401 | PSCC-J1A-10C48-0401 | PSCC-J1A-15C48-0401 | |
|---|---|---|---|---|---|
| LN-H Series | PSCC-J1A-30048-0402 | PSCC-J1A-60048-0402 | PSCC-J1A-10C48-0402 | PSCC-J1A-15C48-0402 | |
| Drive method | Constant-current system | ||||
| Light intensity control method | Digital setting | ||||
| Number of channels | 1channel | ||||
| Output voltage (rating) | 24 to 48 VDC | ||||
| Output current (rating) | 400 mA / blocks | ||||
| Output capacity | light | 231 W | 480 W | 807 W | 1152 W |
| fan | 20 W | 70 W | 70 W | 110 W | |
| Output connectors | metal connector (12 pins) x 2pcs.* | metal connector (37 pins) x 2pcs. | metal connector (37 pins) x 4pcs. | metal connector (37 pins) x 4pcs. | |
| Power supply voltage(rating) | 100 to 240 VAC, 50/60 Hz/td> | ||||
| Maximum number of blocks | 12 blocks | 25 blocks | 42 blocks | 60 blocks | |
| Power consumption (reference value) | 480 VA | 960 VA | 1540 VA | 2200 VA | |
| Cooling method | Forced air cooling with fans inside the Control Unit | ||||
| External control method: Connector name and format | Parallel communications: D-sub15P connector (M2.6 screws), RS232C communications: D-sub9P connector (#4-40 screws), Ethernet communications: LAN connector / RJ45 | ||||
| External light intensity control | Parallel communications: Entire intensity control data, RS232C communications: Entire intensity control data and light distribution data, Ethernet communications: Entire intensity control data and light distribution data | ||||
| External ON/OFF | Photocoupler input through parallel comm. connector or command communications in RS232C or Ethernet Communications Mode | ||||
| Conformed standards | CE, UKCA, RoHS, REACH | ||||
| Weight | 4.0 kg | 5.4 kg | 8.4 kg | 9.4 kg | |
* There are individual connectors for temperature sensor (5 pins) and fan (2 pins) each.
* LN-GA Series (the end of the model name:0401) * LN-HA Series (the end of the model name:0402)

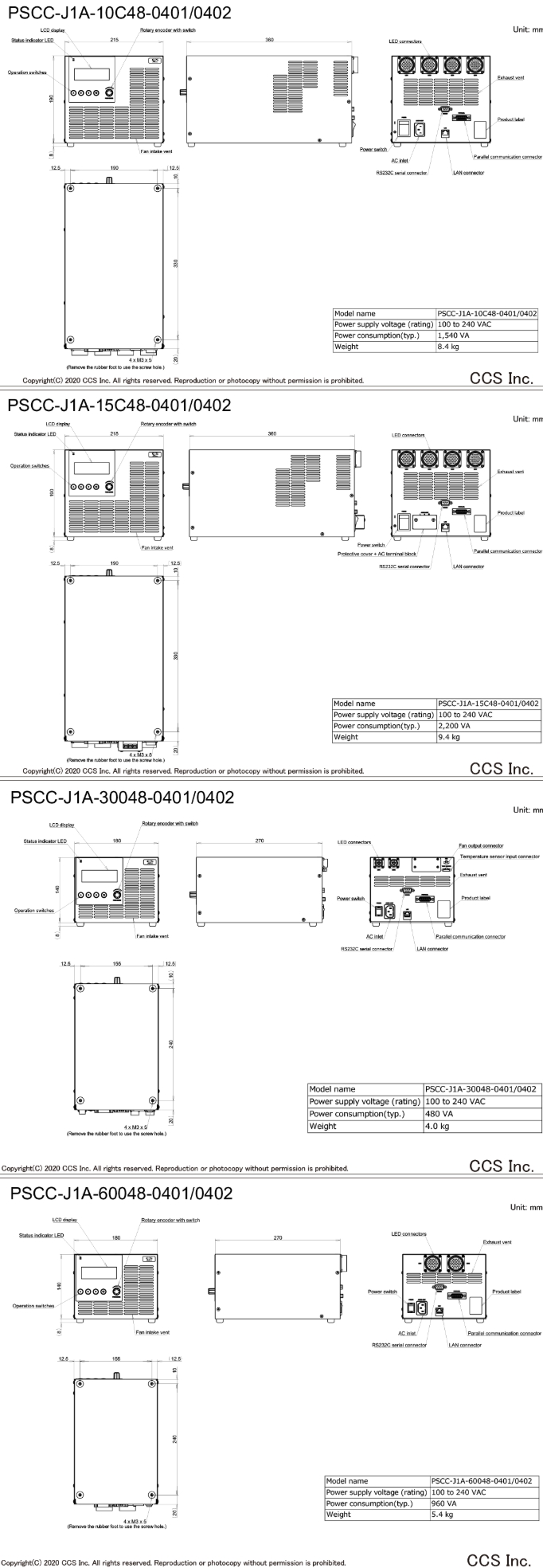

Dimensions (mm)
