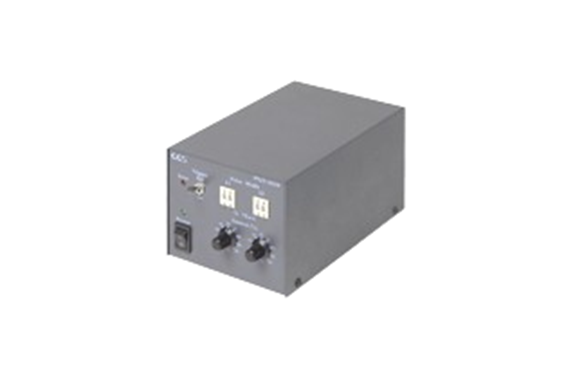

CCS PTU2-3024(A) Strobe Unit

Manufacturer: CCS Inc.
Model: PTU2-3024(A)

Features

This 2-channel Strobe Control Unit can be connected to 24V LED Light Units within a total power consumption of 27 W.
It operates on a 100 to 240 VAC input and measures 110 x 170 x 90 mm (width x depth x height).

Specifications

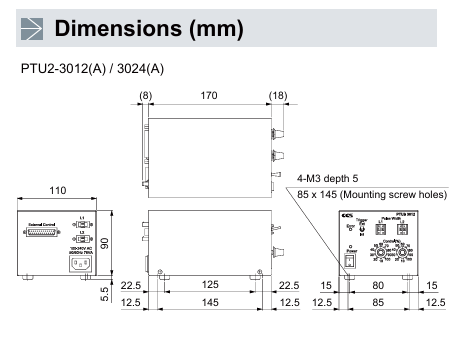

Dimensions	W 110 mm x D 170 mm x H 90 mm
Applicable Light Unit (output ratings)	24 V/27 W (total for 2 channels)
Number of channels	2 channels
Drive method	Constant lighting
Lighting method	Strobe lighting
Intensity control method	Lighting time control
Frequency	50/60 Hz
Output voltage	48V DC
Output current	4.3 A max.
Inrush current	15 A (at 100 VAC)/30 A (at 240 VAC) *From a cold start
External control input	Parallel 4 bits/channel, 5V-CMOS level input, pull-up resistance of 4.7Ω Low level: 1.13V max, High level: 3.15V min.
Lighting pulse width	10μs to 990μs: Set with the light pulse width setting switch and the intensity control knob on the front panel. Lighting time = Pulse Width x Control Light pulse width: 0 to 99 x 10μs (external mode only) Control: 10 to 100% (in 10% steps)
Lighting delay	15μs max.
Output connector	SMP-03V-BC (1: Output(+), 2: NC, 3: Output(-)) x 2 pieces
External control connector	External control: 25-pin D-sub plug with M2.6 mm screws x 1 piece
Trigger	Trigger mode: Int/Ext (Both channels are changed simultaneously.) Int (Internal trigger): 1.42 ms cycle, Lighting time of 10 to 100μs (Used for operation confirmation) Ext (External trigger): Photo-coupler input, Current of 5 mA max., Pulse width of 20μs min., Wave rise/fall of 10μs max. (Ambiguous wave pattern is not allowed.), Operable trigger input cycle of 14.2 ms min. (When the pulse width setting switch is set to 99.)
Trigger output	Trigger input ON: High pulse output with 5V CMOS signal 8: Trig1 OUT, 9: Trig2 OUT, 10: GND
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	1200 g
Material	Steel plate t1.0
Accessories	2m long 3-prong AC power cord with ground terminal x 1, External connector x 1 Instruction Guide x 1
