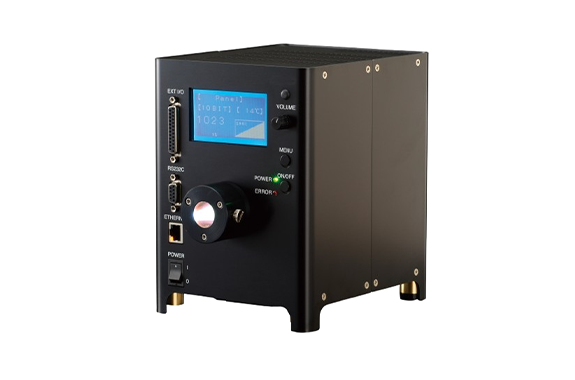

CCS SLG-150V-CCS-□-MM Light Source Units
Manufacturer: CCS Inc.
Model: SLG-150V-CCS-□-MM
Features
- Near infrared and SWIR LED light source suitable for replacement of halogen light source
- Light distribution angle: 50°
- Wavelength: 1300 nm, 1450 nm, 1550 nm
Specifications
| Emitting color | Infrared |
|---|---|
| Dimensions | W 150 mm x D 180 mm x H 205 mm |
| Applicable fiber bundle diameter | Φ 8 – Φ 14 mm |
| Light distribution angle | Total angle of 50° |
| Number of channels | 1 channel |
| Drive method | Constant-current system |
| Intensity control method | Variable-current control |
| Input power | 100 to 240 VAC (±10%), 50/60 Hz |
| Power consumption | 1300/1450/1550 nm: 115 VA |
| Inrush current | 15 A at 100 VAC, 30 A at 200 VAC From a cold start |
| Ground leakage current | 3.5 mA max. (264 VAC, 60 Hz, with no load) |
| Insulation withstand voltage(input-output, input-FG) | 1,500 VAC for one minute, cutoff current: 10 mA, 500 VDC/20 MΩ min. |
| Conformed standards | [Compatible standards] CE [Safety standard] EN61010-1 [EMC standard] Conforms to EN61000-6-2, EN61000-6-4 [Environmental regulations] RoHS |
| Operating temperature and humidity | Temperature: 5 to 40°C, Humidity: 20% to 80%RH (with no condensation) Altitude: 2,000 m max., Transient overcurrent: Category II, Pollution level: 2 |
| Storage temperature and humidity | Temperature: −15 to 60°C Humidity: 20% to 85%RH (with no condensation) |
| Cooling method | Forced cooling |
| Weight | 3,900 g |
| Material, coating, and surface finish | Aluminum alloy (black alumite) |
| Accessories | User Manual × 1, 3-prong AC cord with ground terminal (2 m) × 1, Light guide adapter × 1 |
| Notes | Wavelength: 1300 nm, 1450 nm, 1550 nm |
Dimensions (mm)
