CCS Inc.

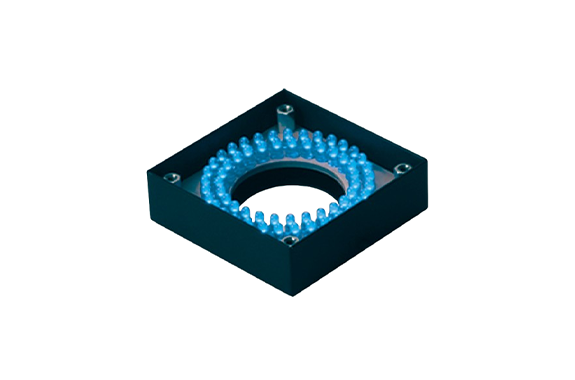

CCS SQR-56BL2 Ring
Manufacturer: CCS Inc.
Model: SQR-56BL2
Features
- This Light Unit emits blue light and measures 56 x 56 x 22 mm (width x depth x height).
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | W 56 mm x D 56 mm x H 22 mm |
| Input voltage | 24VDC |
| Power consumption | 3.8 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | SPCC |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 75 g max. |
| Accessories | Handling Precautions |
