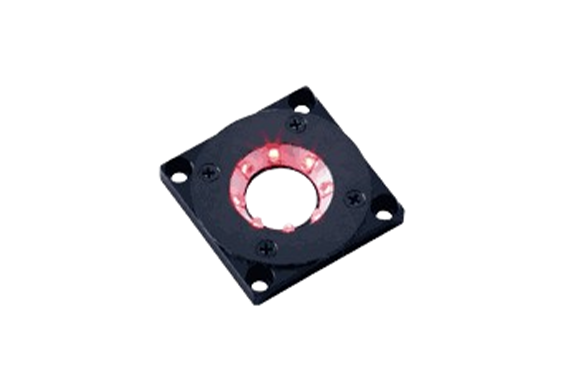

CCS SQR-TP-28RD Low-Angle Ring
Manufacturer: CCS Inc.
Model: SQR-TP-28RD
Features
- This Light Unit emits red light and measures 28 x 28 x 4 mm (width x depth x height).
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 638 nm typ. |
| Dimensions | W 28 mm x D 28 mm x H 4 mm |
| Input voltage | 24 VDC |
| Power consumption | 0.5 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM, SPCC |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 15 g max. |
| Accessories | Handling Precautions |

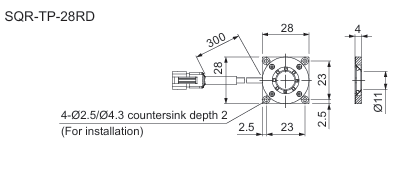

Dimensions (mm)
