CCS TH-PF-100X100RD High Power Strobe
Manufacturer: CCS Inc.
Model: TH-PF-100X100RD
Features

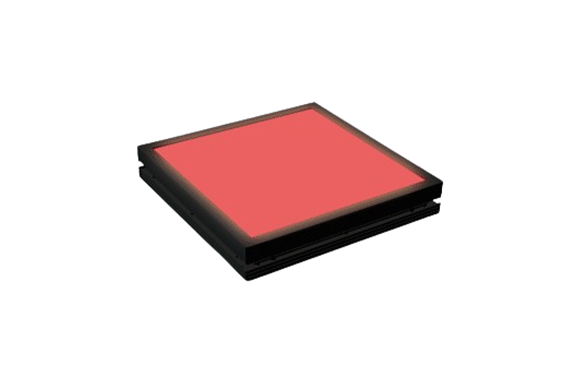

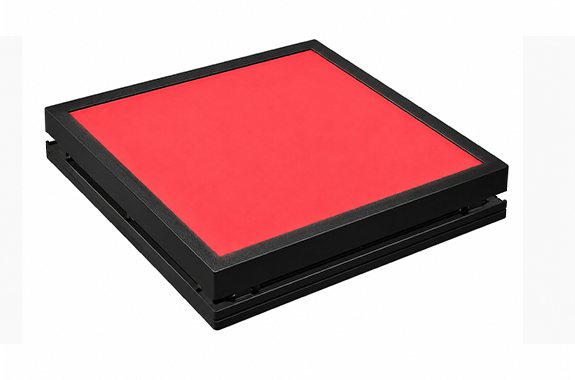

- This flat light emits red light and measures 112 x 112 x 15 mm (width x depth x height). The light-emitting section measures 100 x 100 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 625 nm typ. |
| Dimensions | W 112 mm x D 112 mm x H 15 mm |
| Peak current | 41 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1,2: (+) / 3,4: (-) / 5,6: (+) / 7,8: (-) / 9: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-09V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 200 g |
| Accessories | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |

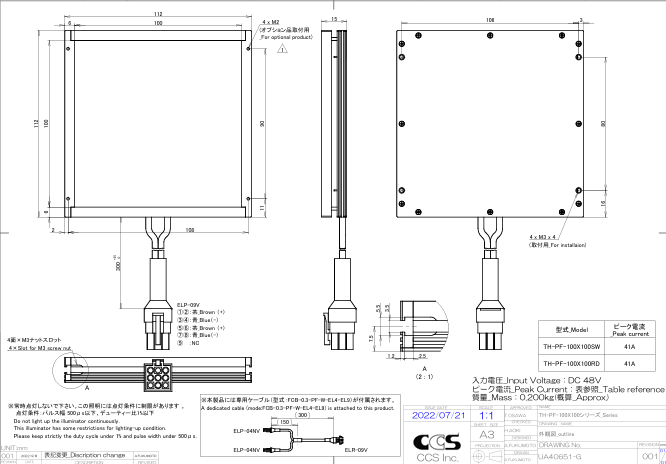

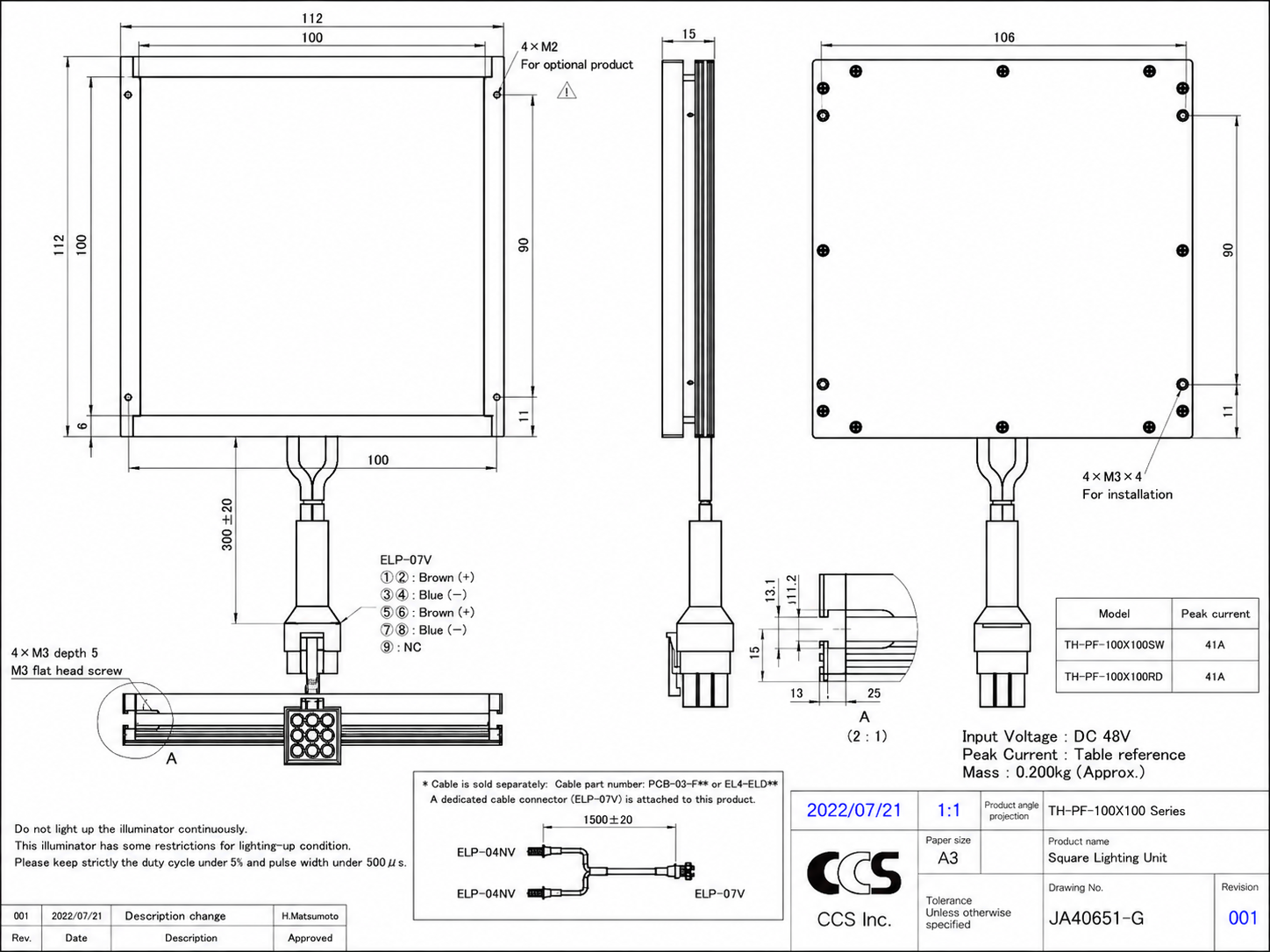

Dimensions (mm)
