CCS TH2-100X100IR165 IR Lights [Infrared Lighting] (over 1000-nm type)
Manufacturer: CCS Inc.
Model: TH2-100X100IR165
Features

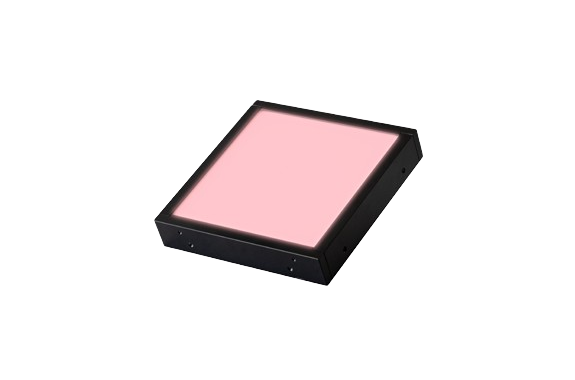

- Flat infrared illumination TH2-100X100IR165 with a width of 116 mm x depth of 116 mm x height of 26 mm, a light emitting surface of 100 mm x 100 mm, and a peak wavelength of 1650 nm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 1650 nm typ. |
| Dimensions | W 116 mm x D 116 mm x H 26 mm |
| Input voltage | 24VDC |
| Power consumption | 12W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 280 g max. |
| Accessories | User Manual |

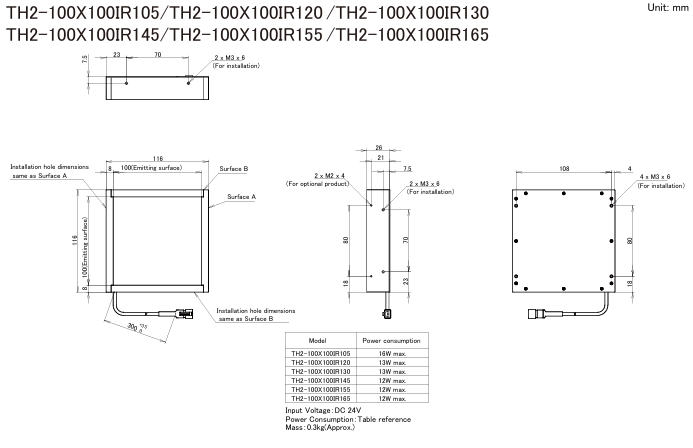

Dimensions (mm)
