CCS Inc.

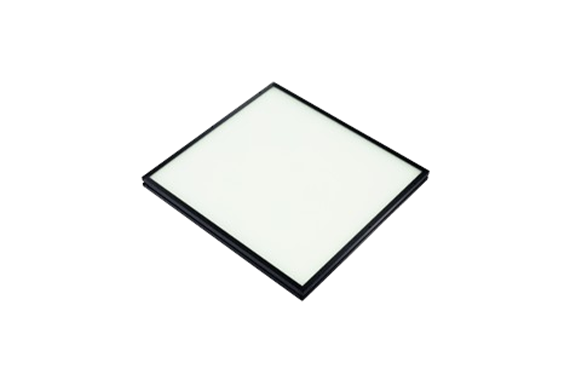

CCS TH2-211X200SW Flat
Manufacturer: CCS Inc.
Model: TH2-211X200SW
Feature
- This Light Unit emits white light and measures 223 x 212 x 15 mm (width x depth x height).
- The light-emitting surface measures 211 x 200 mm.
- High-luminance type.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,800 K typ. |
| Dimensions | W 223 mm x D 212 mm x H 15 mm |
| Input voltage | 24VDC |
| Power consumption | 65 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 580 g max. |
| Accessories | User Manual |
| Notes | The correlated color temperature is the same as that of the conventional product. TH2: 5,800 K (A value for the Light Unit), Conventional products TH: 6,600 K (A value for individual LEDs) |
Dimensions (mm)
