CCS Inc.
CCS TH2-300X75SW Flat
Manufacturer: CCS Inc.
Model: TH2-300X75SW
Feature

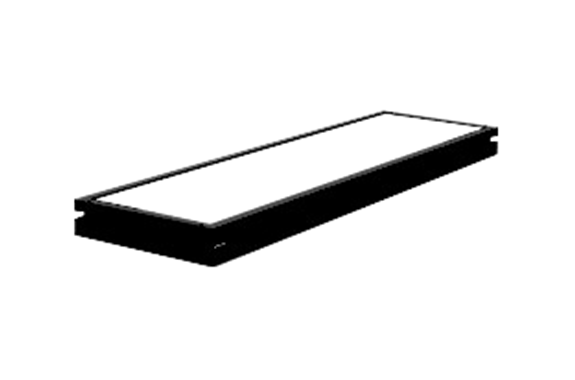

- This Light Unit emits white light and measures 312 x 87 x 19 mm (width x depth x height).
- The light-emitting surface measures 300 x 75 mm.
- Rectangular type.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,800 K typ. |
| Dimensions | W 312 mm x D 87 mm x H 19 mm |
| Input voltage | 24VDC |
| Power consumption | 68 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 650 g max. |
| Accessories | User Manual |
Dimensions (mm)
