CCS TH2-43X35BL-PM Flat
Manufacturer: CCS Inc.
Model: TH2-43X35BL-PM
Feature

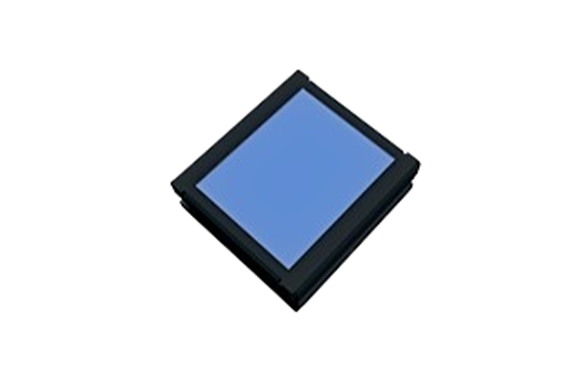

- This Light Unit emits blue light and measures 51 x 47 x 18 mm (width x depth x height).
- The light-emitting surface measures 43 x 35 mm.
- High-directivity type.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm typ. |
| Dimensions | W 51 mm x D 47 mm x H 18 mm |
| Input voltage | 24VDC |
| Power consumption | 5.5 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 60 g max. |
| Accessories | User Manual |

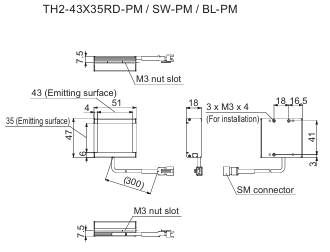

Dimensions (mm)
