CCS Inc.

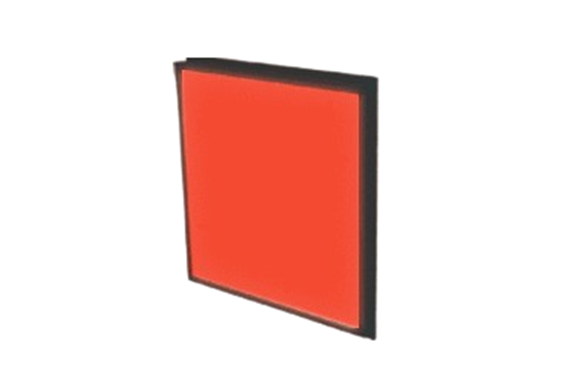

CCS TH2-500X500RD Flat
Manufacturer: CCS Inc.
Model: TH2-500X500RD
Feature
- This Light Unit emits red light and measures 520 x 550 x 35 mm (width x depth x height).
- The light-emitting surface measures 500 x 500 mm.
- Large type.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 635 nm typ. |
| Dimensions | W 520 mm x D 550 mm x H 35 mm |
| Input voltage | 24VDC |
| Power consumption | 202 W max. |
| Polarity & signal | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 7,800 g max. |
| Accessories | User Manual |

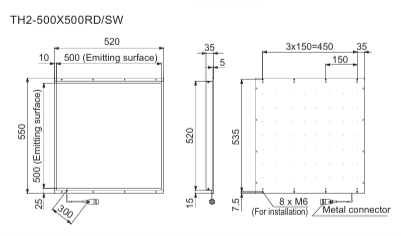

Dimensions (mm)
